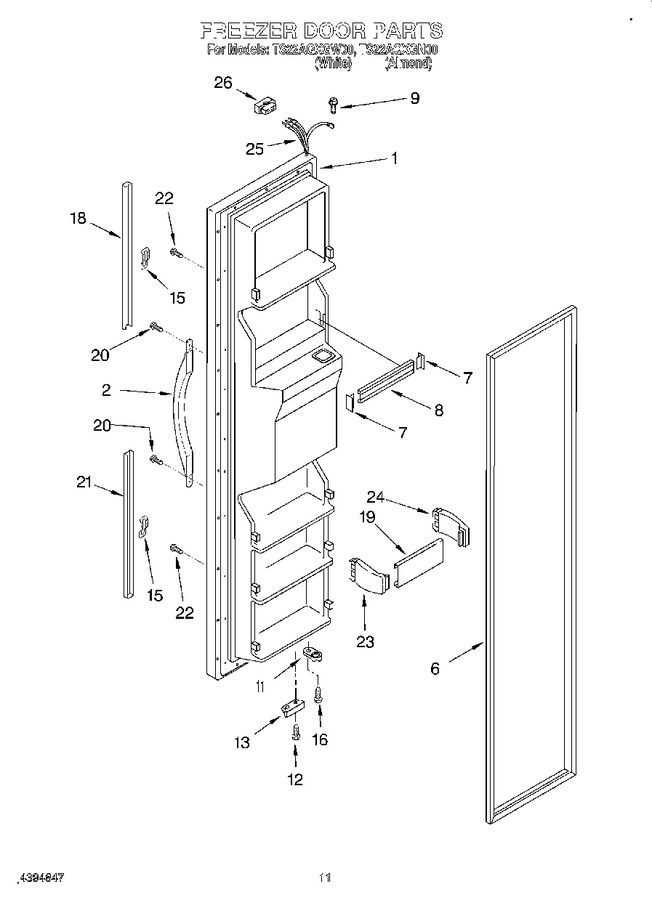

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186473N		Freezer Door (almond (includes Item No.6 And Dispenser Front Parts))		Appelez-nous	-
1	2186473W		Freezer Door (white)		Appelez-nous	-
2	2193345N		Handle, Center (almond)		Appelez-nous	-
2	2193345W		Handle, Center (white)		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
8	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 24.27
9	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2195950		Bracket, Door Stop				$ 5.84
15	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
16	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	2194972W		Extension, Top (white)		Appelez-nous	-
18	2194972N		Extension, Top (almond)		Appelez-nous	-
19	2195919		Door, Shelf (4)		Appelez-nous	-
20	WP489491		Screw   (Replaces: 489491)				$ 7.30
21	2194970N		Extension, Bottom (almond)		Appelez-nous	-
21	2194970W		Extension, Bottom (white)		Appelez-nous	-
22	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
23	2195917		Endcap (left)		Appelez-nous	-
24	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 13.18
25	2198271		Wire Assembly		Appelez-nous	-
26	WP2154473		Connector   (Replaces: 2154473)				$ 24.83

    View Diagram in Separate Window       Print Part List
