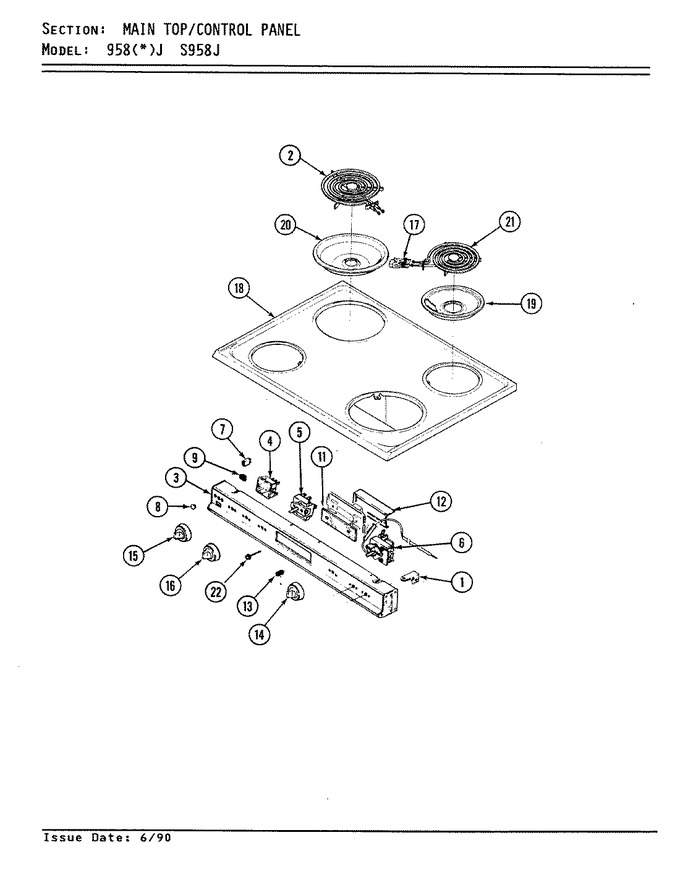

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3801F047-34		Bracket,control Panel (r)	1	Appelez-nous	-
1	3801F049-34		Bracket,control Panel (l)	1	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 8.36
2	WP3191454		Element (8``)   (Replaces: 7406P039-60)	1			$ 190.90
3	2614F017-90		Panel Manifold Blk	1	Appelez-nous	-
3	WP4159193		Screw   (Replaces: 7118P004-60)	1			$ 5.07
3	3604F067-51		Shield	1	Appelez-nous	-
4	W11122006		Switch, Inf. 250v   (Replaces: 7403P181-60)	1			$ 169.30
5	7403P031-60		Switch, Selector	1	Appelez-nous	-
5	7101P280-60		Screw W/washer (blk)	1	Appelez-nous	-
6	7404P029-60		Thermostat	1	Appelez-nous	-
7	7407P081-60		Light, Indicator	1	Appelez-nous	-
8	W11690131		Lens, Indicator Light   (Replaces: 7730P008-60)	1			$ 7.85
9	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	1			$ 106.58
10	8312P019-60		Shaft, Bit Generator	1	Appelez-nous	-
10	7602P097-60		Clock	1	Appelez-nous	-
11	7902P314-60		Glass, Clock	1	Appelez-nous	-
12	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 4.27
12	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 8.18
12	3801F193-45		Bracket, Clock	1	Appelez-nous	-
13	7711P172-60		Knob, Clock (blk)	1			$ 23.55
14	7735P016-60		Knob, Thermostat	1	Appelez-nous	-
15	7737P015-60		Knob, Surface Switch	1	Appelez-nous	-
16	7739P019-60		Knob, Selector	1	Appelez-nous	-
17	WP74004005		Screw   (Replaces: 7118P010-60)	1			$ 8.66
17	330031		Block, Surface Unit   (Replaces: 7401P014-60)	1		Immediately	$ 19.92
18	2002W049-81		Top Main Almond	1	Appelez-nous	-
19	WPW10196406		Bowl, Drip (6``)(w/hole-chr)   (Replaces: 7725P015-60)	1		Immediately	$ 13.39
20	WPW10196405		Bowl, Drip (8``)   (Replaces: 7725P014-60)	1		Immediately	$ 17.29
21	WP660532		Element (6``)   (Replaces: 7406P037-60)	1		Immediately	$ 50.11
22	7711P422-60		Knob, Clock	1	Appelez-nous	-
