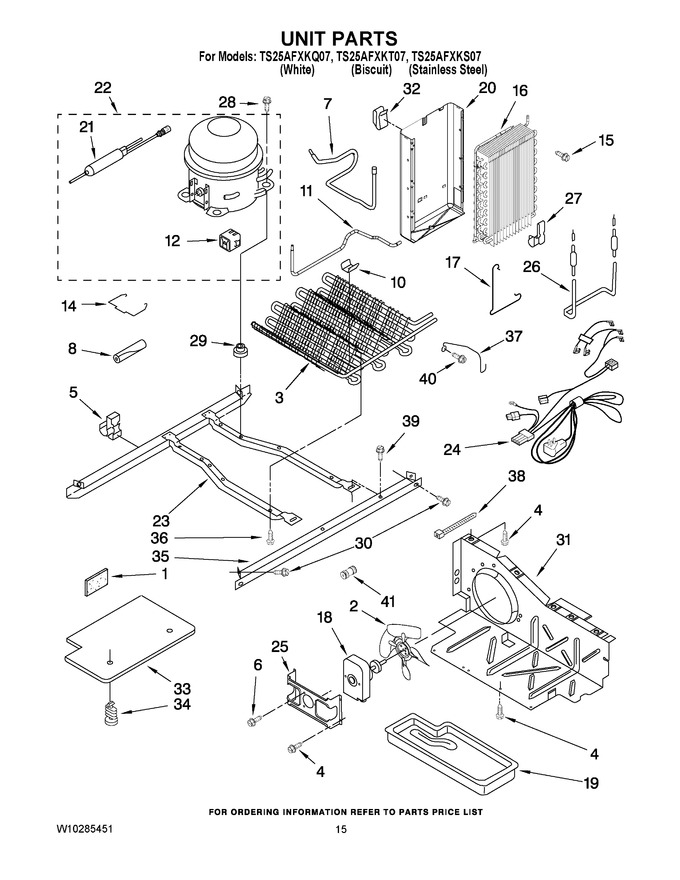

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11553819 | Insulation, Sound (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121484) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2208280 | Clip, Wire |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 10 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 11 | 2325479 | Tube, Condenser To Heat Loop |
|
- | |||||
| 12 | WP2304885 | Start Device, Combination (start Relay And Overload) For Production Compressor Only (Replaces: 2320153) |
|
$ 188.44 | |||||
| 14 | 2223313 | Clip, Retaining |
|
- | |||||
| 15 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 16 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 17 | 2161324 | Clamp |
|
- | |||||
| 18 | W10124096 | Fan, Motor (Replaces: W10130108) |
|
Immediately | $ 163.14 | ||||
| 19 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 158.16 | ||||
| 20 | 2217194 | Heat Shield |
|
- | |||||
| 21 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 22 | W10139460 | Compressor (also Order 876765 Tube Kit) (Replaces: W10120460) |
|
$ 515.84 | |||||
| 23 | 2304904 | Unit Mounting Frame |
|
- | |||||
| 24 | 2187510 | Unit, Harness |
|
- | |||||
| 25 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 29 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 30 | 489340 | Screw |
|
- | |||||
| 31 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 32 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 33 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 34 | 489396 | Clip |
|
$ 11.26 | |||||
| 35 | 2305374 | Unit Mounting Rail |
|
$ 84.67 | |||||
| 36 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 37 | 2186495 | Guard, Fan |
|
- | |||||
| 38 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 8.30 | |||||
| 39 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 40 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 41 | WPW10334458 | Union (Replaces: 2320322) |
|
$ 22.67 | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.0 Oz. (r-134a)) |
|
- |
