SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

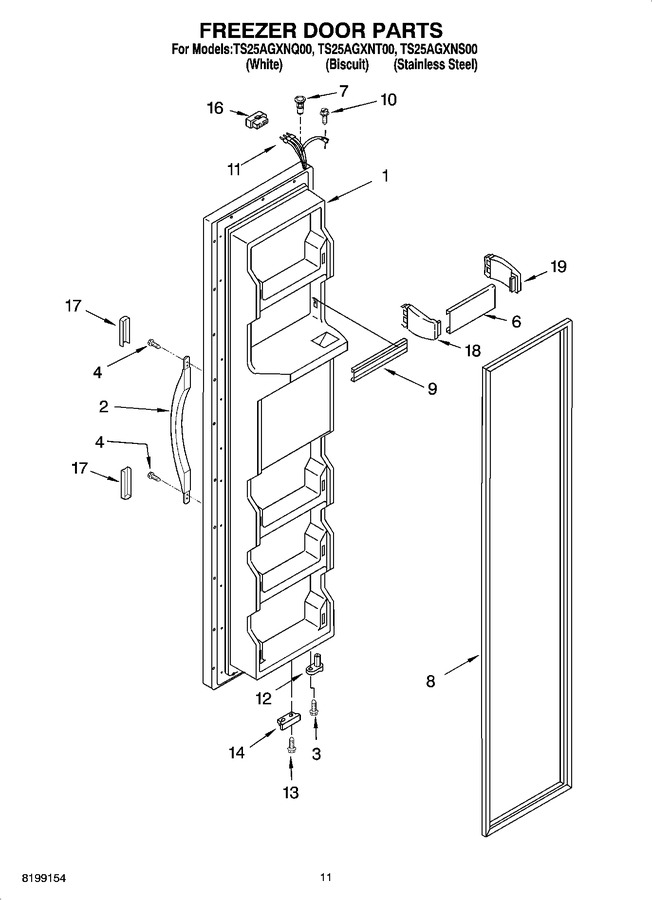

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305960T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2305960S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2305960W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
2	2186649T		Handle, Center (biscuit)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
4	WP489491		Screw   (Replaces: 489491)				$ 6.57
6	2195927		Trim, Shelf (4)		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 299.24
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 293.13
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 21.84
10	WP489128		Screw   (Replaces: 488500)				$ 10.26
11	2311641		Wiring Harness   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 38.51
16	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
17	2193353B		Trim, Handle (black)				$ 5.85
17	2193353T		Trim, Handle (biscuit)		Appelez-nous	-
17	WP2193353W		Trim, Handle (white)   (Replaces: 2193353W)				$ 7.67
18	2195917		Endcap (left)		Appelez-nous	-
19	WP2195916K		End Cap (right)   (Replaces: 2195916)			Immediately	$ 11.86

    View Diagram in Separate Window       Print Part List
