SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

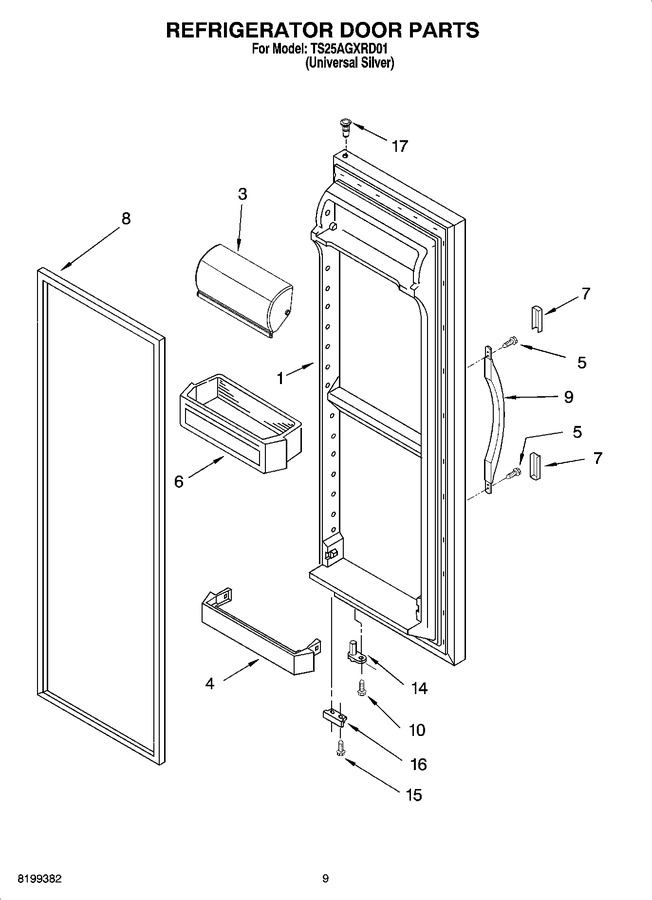

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315039US		Refrigerator Door (includes Item 8) (universal Silver)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2177962K		Trivet, Shelf   (Replaces: 2177962K)				$ 85.14
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WP2187172		Shelf Bin (3)   (Replaces: 2187172K)			Immediately	$ 45.09
7	2193353B		Trim, Handle (black)				$ 5.85
8	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
9	2186649B		Handle, Center (black)				$ 72.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
17	2308050		Thimble, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
