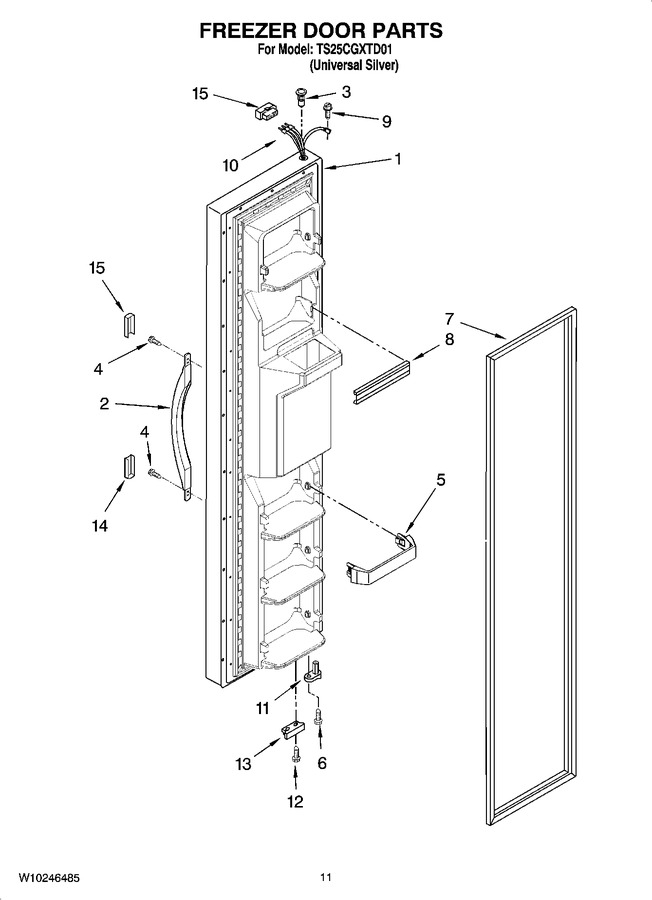

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309943US		Freezer Door (includes Item 8 And Dispenser Front Parts) (universal Silver)		Appelez-nous	-
2	2304413B		Handle (black)		Appelez-nous	-
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
4	WP489491		Screw (4)   (Replaces: 489491)				$ 6.57
5	WP2171157		Trivet (4)   (Replaces: 2171157)				$ 57.33
6	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 299.24
8	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 21.84
9	WP489464		Screw   (Replaces: 3400896)			Immediately	$ 7.54
10	2311641		Wire Harness		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 38.51
14	WP2194272B		Trim, Handle   (Replaces: 2194272B)				$ 6.57
15	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
