SELECT A DIAGRAM

01 - Cabinet Parts

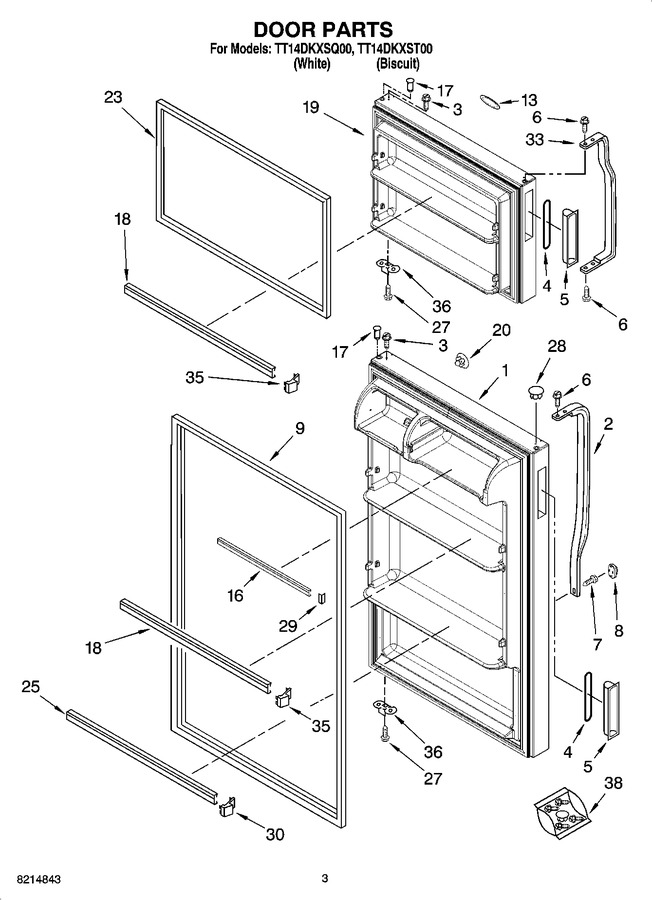

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316197W		Refrigerator Door Includes (9&17) (white)				$ 609.89
1	2316197T		Refrigerator Door Includes (9&17) (biscuit)		Appelez-nous	-
2	WP2221946W		Handle, Refrigerator (bow) (white)   (Replaces: 2221946W)			Immediately	$ 122.95
2	WP2221946T		Handle, Refrigerator (bow) (biscuit)   (Replaces: 2221946T)				$ 137.03
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
4	2222107		Gasket, Handle		Appelez-nous	-
5	WP984493		Handle, Snap-in (white)   (Replaces: 984493)				$ 103.04
5	2213998		Handle, Snap-in (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
7	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
8	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.33
8	2202819T		Cover, Screw (biscuit)				$ 8.02
9	WP2319265T		Door Gasket, Magnetic   (Replaces: 2264506)			Immediately	$ 210.38
13	2218190		Nameplate (biscuit)		Appelez-nous	-
13	2200749		Nameplate (white)		Appelez-nous	-
16	W11129820		Trim, Door Shelf   (Replaces: 2264785)			Immediately	$ 114.61
17	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
18	WP2266727		Trim, Door   (Replaces: 2263260)			Immediately	$ 108.51
19	2316196T		Freezer Door Includes (17 & 23) (biscuit)		Appelez-nous	-
19	2316196W		Freezer Door Includes (17 & 23) (white)				$ 545.55
20	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.99
20	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.17
23	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 194.27
25	WP2266738		Trim, Door Shelf   (Replaces: 2263259)				$ 105.55
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.19
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
30	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 11.86
33	WP2202098		Handle, Freezer (bow) (white)   (Replaces: 2202098)				$ 141.14
33	WP2215015		Handle, Freezer (bow) (biscuit)   (Replaces: 2215015)				$ 137.91
35	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
36	2217944		Bracket, Door Stop				$ 26.55
38	2262997		Hole Plug Kit (if Bow Handle Is Removed) (biscuit)		Appelez-nous	-
38	2262996		Hole Plug Kit (if Bow Handle Is Removed) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
