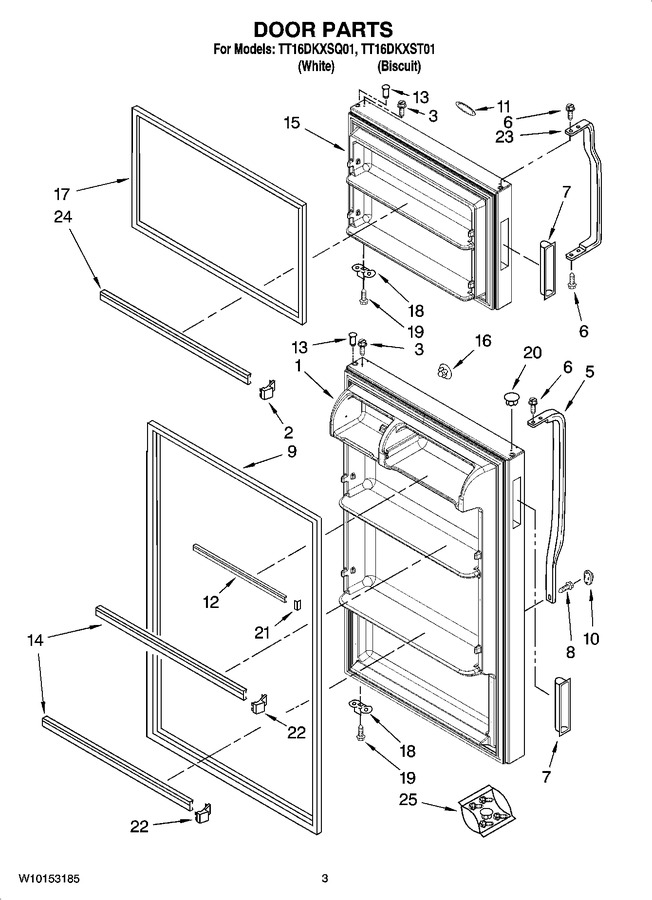

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316342W | Refrigerator Door (includes Item 9) (white) |
|
- | |||||
| 1 | 2316342T | Refrigerator Door (includes Item 9) (biscuit) |
|
- | |||||
| 2 | WP2156003 | Plug-trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 5 | WP2221946W | Handle (rc) (bow) (white) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 5 | WP2221946T | Handle (rc) (bow) (biscuit) (Replaces: 2221946T) |
|
$ 152.26 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 7 | 2213998 | Handle (biscuit) |
|
- | |||||
| 7 | WP984493 | Handle (white) (Replaces: 984493) |
|
$ 114.49 | |||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 9 | WP2319266T | Door Gasket, Magnetic (Replaces: 2264507) |
|
$ 171.60 | |||||
| 10 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 10 | 2202819T | Screw Cover (biscuit) |
|
$ 8.02 | |||||
| 11 | 2218190 | Nameplate (biscuit) |
|
- | |||||
| 11 | 2200749 | Nameplate (white) |
|
- | |||||
| 12 | W11129820 | Trim, Door Shelf (upper) (Replaces: 2266729) |
|
Immediately | $ 127.34 | ||||
| 13 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 14 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 111.69 | |||||
| 15 | 2316343T | Freezer Door (includes Item 23) (biscuit) |
|
- | |||||
| 15 | 2316343W | Freezer Door (includes Item 23) (white) |
|
- | |||||
| 16 | WP2200936 | Hole Plug (biscuit) (Replaces: 2200936) |
|
$ 7.97 | |||||
| 16 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 17 | WP2319263T | Door Gasket, Magnetic (Replaces: 2263257) |
|
Immediately | $ 169.53 | ||||
| 18 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 19 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 20 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 20 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.99 | |||||
| 21 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 22 | WP2195916K | Plug, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 23 | WP2202098 | Handle (fc) (bow) (white) (Replaces: 2202098) |
|
$ 156.82 | |||||
| 23 | WP2215015 | Handle (fc) (bow) (biscuit) (Replaces: 2215015) |
|
$ 153.23 | |||||
| 24 | WP2266727 | Trim-door (2) (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 25 | 2262997 | Hole Plug Kit (if Bow Handle Is Removed) (biscuit) |
|
- | |||||
| 25 | 2262996 | Hole Plug Kit (if Bow Handle Is Removed) (white) |
|
- |
