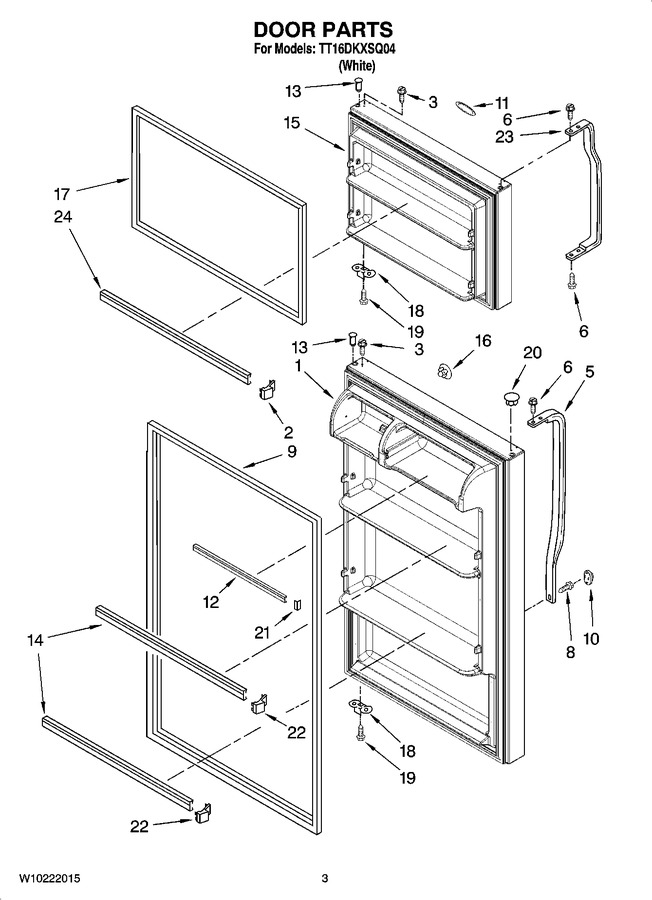

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2316145W		Refrigerator Door (includes Item 9) (white)   (Replaces: 2316145W)		Appelez-nous	-
2	WP2156003		Plug-trim   (Replaces: 2156003)			Immediately	$ 13.25
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
5	WP2221946W		Handle (rc) (bow) (white)   (Replaces: 2221946W)			Immediately	$ 130.11
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	WP2319266T		Door Gasket, Magnetic   (Replaces: W10190034)				$ 171.60
10	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 8.14
11	W10153826		Nameplate (white)		Appelez-nous	-
12	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 127.34
13	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
14	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
15	2263254W		Freezer Door (includes Item 17) (white)		Appelez-nous	-
16	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
17	WP2319263T		Door Gasket, Magnetic   (Replaces: W10190031)			Immediately	$ 215.86
18	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
19	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
20	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
21	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
22	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 13.18
23	WP2202098		Handle (fc) (bow) (white)   (Replaces: 2202098)				$ 156.82
24	WP2266727		Trim-door (2)   (Replaces: 2266727)			Immediately	$ 120.57
