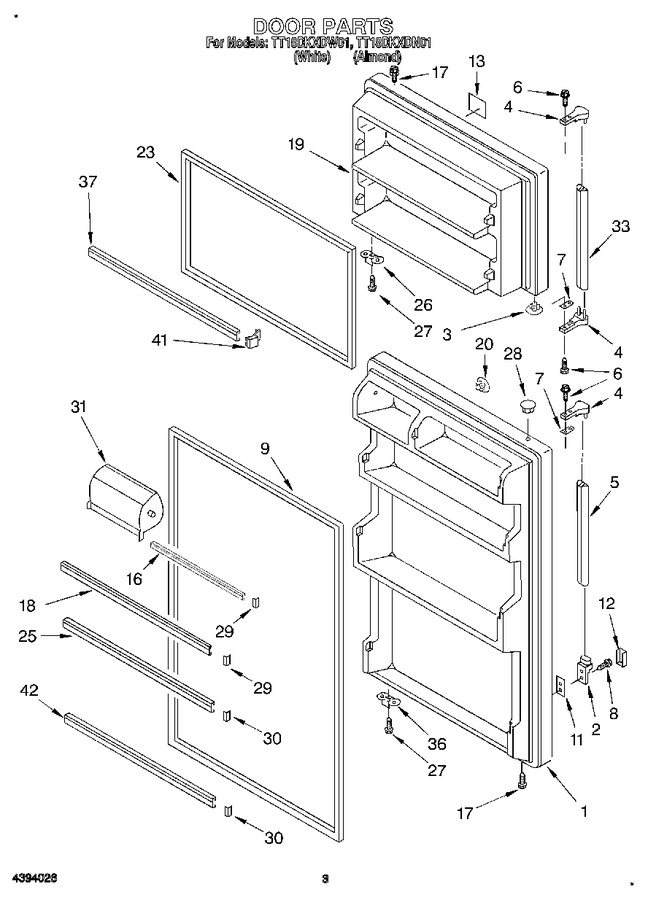

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2171269 | Refrigerator Door (includes No.9) (white) |
|
- | |||||
| 1 | 2171270 | Refrigerator Door (includes No.9) (almond) |
|
- | |||||
| 2 | 935105 | End Cap |
|
$ 32.80 | |||||
| 3 | 989197 | Hole Plug (2) (almond) |
|
- | |||||
| 3 | 534927 | Hole Plug (2) (white) |
|
- | |||||
| 4 | 944157 | End Cap, Handle (2) |
|
- | |||||
| 5 | 2157109 | Handle, Center (white) |
|
- | |||||
| 5 | 2157110 | Handle, Center (almond) |
|
- | |||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 9 | 2159057 | Door Gasket, Magnetic (service) |
|
Immediately | $ 164.66 | ||||
| 11 | 935076 | Shim, Handle |
|
- | |||||
| 12 | 987873 | Cover, End Cap |
|
- | |||||
| 13 | 2200749 | Nameplate (white) (Replaces: 2173345) |
|
- | |||||
| 13 | 2173346 | Nameplate (almond Model) |
|
- | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2163650) |
|
$ 124.32 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 8.37 | |||||
| 18 | WP2201061 | Trim, Door (Replaces: 2163677) |
|
$ 124.32 | |||||
| 19 | 2159271 | Freezer Door (includes No.23) (almond) |
|
- | |||||
| 19 | 2159270 | Freezer Door (includes No.23) (white) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 1122653) |
|
Immediately | $ 7.77 | ||||
| 20 | 1122654 | Hole Plug (almond) |
|
- | |||||
| 23 | 2159327 | Door Gasket, Magnetic (service) |
|
Immediately | $ 164.58 | ||||
| 25 | 2163682 | Trim, Door Shelf |
|
- | |||||
| 26 | 2159367 | Bracket, Door Stop |
|
- | |||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 29 | WP2156007 | Plug-trim (4) (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 30 | WP2156006 | Plug-trim (4) (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | WP2218113 | Compartment Door (Replaces: 2166477) |
|
Immediately | $ 50.33 | ||||
| 33 | 2173322 | Handle, F.c. (white) |
|
- | |||||
| 33 | 2173323 | Handle, F.c. (almond) |
|
- | |||||
| 36 | 2159368 | Bracket, Door Stop |
|
- | |||||
| 37 | WP2201061 | Trim-door (2) (Replaces: 2163678) |
|
$ 124.32 | |||||
| 41 | WP2156003 | Endcap (4) (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 42 | 2163683 | Trim, Door |
|
- |
