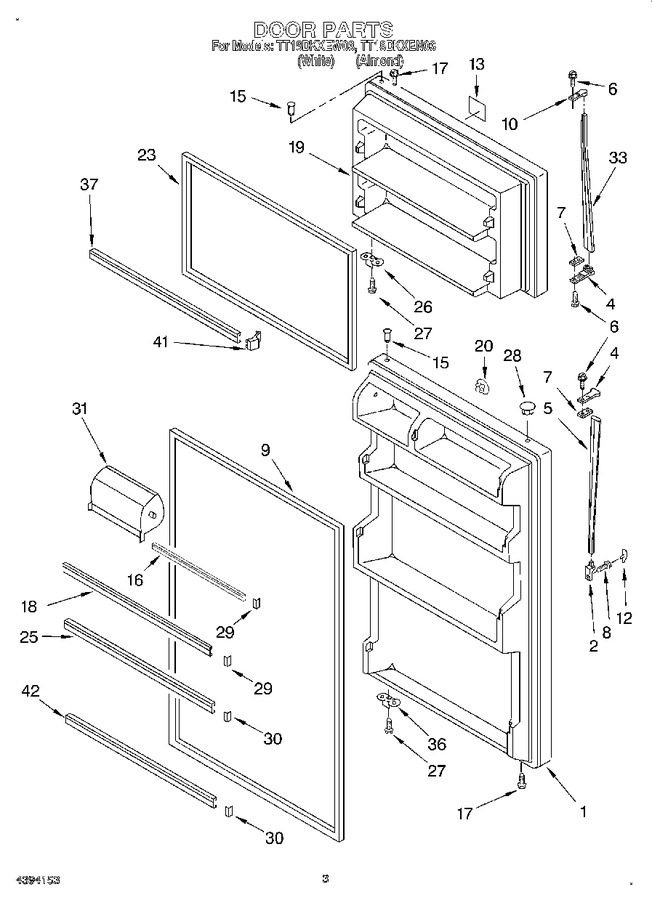

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door (includes No.9 & No.15) (white)		Appelez-nous	-
1	2171270		Refrigerator Door (includes No.9 & No.15) (almond)		Appelez-nous	-
2	819342		End Cap (almond)   (Replaces: 2183142)			Immediately	$ 47.96
2	819342		End Cap (white)   (Replaces: 2183141)			Immediately	$ 47.96
4	819342		End Cap, Handle (2)   (Replaces: 9791771)			Immediately	$ 47.96
5	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
5	2148036		Handle, Center (almond)		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
9	2159057		Door Gasket, Magnetic (service)			Immediately	$ 164.66
10	819342		Handle End (almond)   (Replaces: 9791777)			Immediately	$ 47.96
10	819342		Handle End (white)   (Replaces: 9791776)			Immediately	$ 47.96
12	9791769		Cover, Endcap (white)				$ 5.70
12	9791770		Cover, Endcap (almond)		Appelez-nous	-
13	2200749		Nameplate (white)   (Replaces: 2183233)		Appelez-nous	-
13	2183234		Nameplate (almond Model)		Appelez-nous	-
15	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
16	WP2201061		Trim, Door Shelf   (Replaces: 2163679)				$ 124.32
17	WP8281206		Screw   (Replaces: 489028)				$ 8.37
18	WP2201061		Trim, Door   (Replaces: 2163680)				$ 124.32
19	2182487		Freezer Door (includes No.15 & No.23) (white)		Appelez-nous	-
19	2182491		Freezer Door (includes No.15 & No.23) (almond)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.77
20	1122654		Hole Plug (almond)		Appelez-nous	-
23	2159327		Door Gasket, Magnetic (service)			Immediately	$ 164.58
25	2163684		Trim, Door Shelf		Appelez-nous	-
26	944035		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	989196		Hole Plug (almond)		Appelez-nous	-
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
33	WP2162555		Handle, F.c. (white)   (Replaces: 2171043)			Immediately	$ 157.62
33	2171044		Handle, F.c. (almond)		Appelez-nous	-
36	W11745278		Bracket, Door Stop   (Replaces: 2183805)			Immediately	$ 13.37
37	WP2201061		Trim-door (2)   (Replaces: 2163681)				$ 124.32
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 13.25
42	2163685		Trim, Door		Appelez-nous	-
