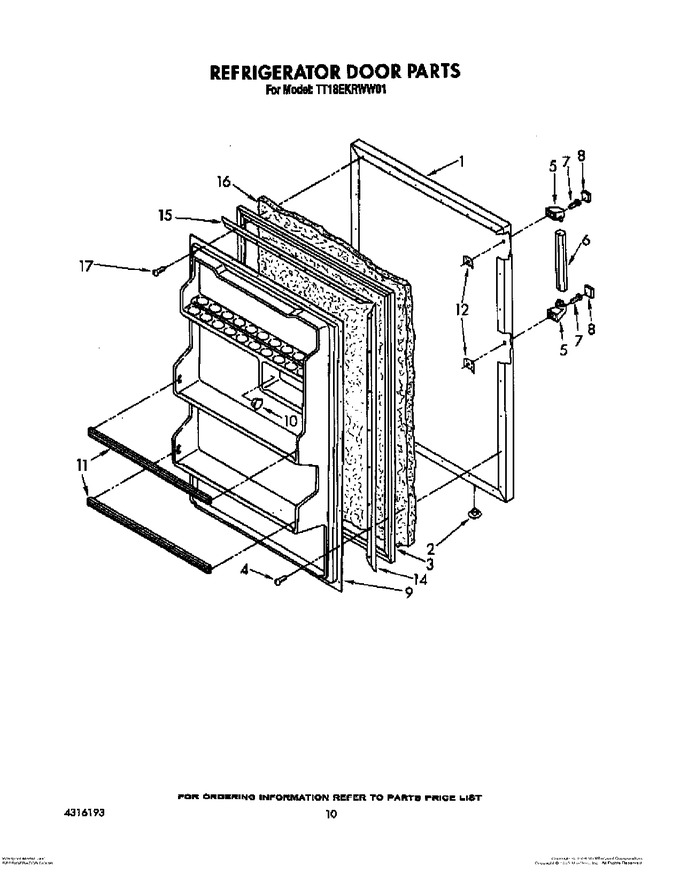

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1106162		Panel, Refrigerator Door (also Order Item 16)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	1122827		Door Gasket, Magnetic		Appelez-nous	-
4	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
4	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
5	1124591		End Cap, Handle (2)		Appelez-nous	-
6	1100023		Handle, Center		Appelez-nous	-
7	488987		Screw, 8-15 X 1-5/8 (2)		Appelez-nous	-
8	934724		Insert, Screw Cover		Appelez-nous	-
9	1120630		Interior Door Panel		Appelez-nous	-
10	941765		Hole, Plug (2)		Appelez-nous	-
11	1116062		Trim, Door Shelf (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
14	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
15	1120616		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
16	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
17	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
17	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 8.28
17	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
17	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
17	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
17	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
17	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
17	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
17	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
17	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
17	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
17	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
17	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
17	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
17	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
17	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
17	833938		Kit, Terminal Connector				$ 8.47
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 149.11
	LIT4316193		Parts List		Appelez-nous	-
	LIT2151712		Care & Use Guide		Appelez-nous	-
	LIT2148894		Energy Label		Appelez-nous	-
	LIT2149680		Service & Wiring Sheet		Appelez-nous	-
