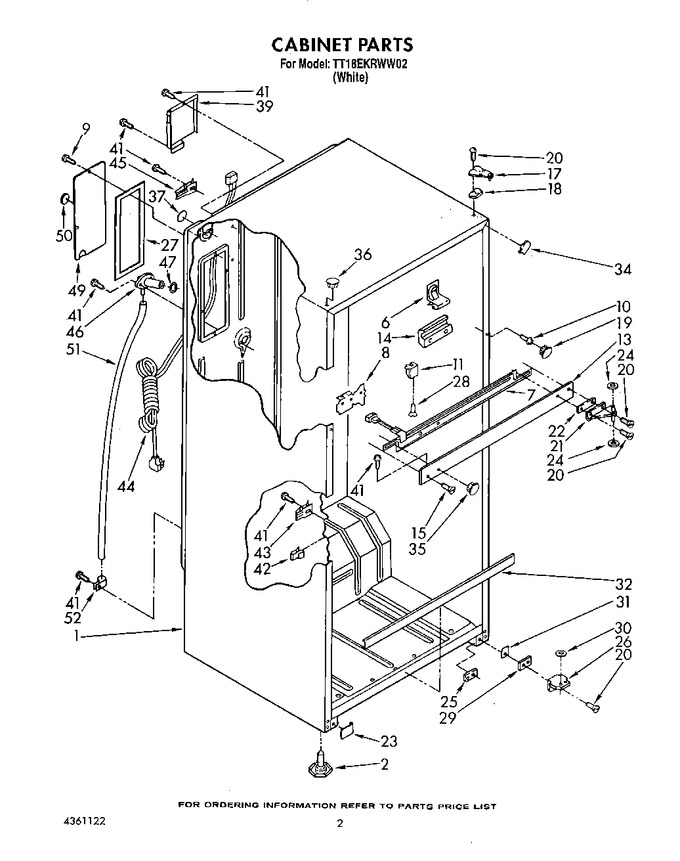

02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 944766 | Leveler (2) |
|
- | |||||
| 6 | 1129018 | Clip, Center Rail (4) |
|
- | |||||
| 7 | 1108139 | Heater, Mullion |
|
- | |||||
| 8 | 1110231 | Center Rail, Bracket (2) |
|
- | |||||
| 9 | WP489464 | Screw (8) (Replaces: 489337) |
|
Immediately | $ 8.38 | ||||
| 10 | 488844 | Screw, 8-32 X 1/2 (2) |
|
- | |||||
| 11 | 2149077 | Spacer (2) |
|
- | |||||
| 13 | 1110343 | Center Rail |
|
- | |||||
| 14 | 2151428 | Center, Rail Shim (2) |
|
- | |||||
| 15 | 489319 | Screw |
|
- | |||||
| 17 | 1129045 | Hinge, Top |
|
$ 15.65 | |||||
| 18 | 1100511 | Shim, Hinge Top |
|
- | |||||
| 19 | 1122929 | Hole Plug (2) |
|
- | |||||
| 20 | 489297 | Screw (repair) |
|
- | |||||
| 20 | 489327 | Screw |
|
- | |||||
| 21 | 1129047 | Hinge, Center |
|
- | |||||
| 22 | 836194 | Shim, Hinge Center |
|
- | |||||
| 23 | 489297 | Screw (repair) |
|
- | |||||
| 23 | WP999367 | Screw (Replaces: 489105) |
|
$ 8.56 | |||||
| 24 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
Immediately | $ 7.55 | ||||
| 25 | 2147312 | Tap Plate (2) |
|
- | |||||
| 26 | 1123880 | Hinge Butt, Bottom |
|
- | |||||
| 27 | 1106510 | Seal, Gasket |
|
- | |||||
| 28 | WP488163 | Screw (2) (Replaces: 488208) |
|
$ 7.92 | |||||
| 29 | 943708 | Shim, Bottom |
|
- | |||||
| 30 | 489201 | Washer, 7/64 |
|
- | |||||
| 31 | 2151421 | Cover, Glider Rail (2) |
|
- | |||||
| 32 | 1109364 | Cover, Deck Rail |
|
- | |||||
| 34 | 1110684 | Filler, Wrap Corner (2) |
|
- | |||||
| 35 | 1119707 | Hole Plug |
|
- | |||||
| 36 | 842031 | Hole Plug (2) |
|
- | |||||
| 37 | 1129056 | Hole Seal |
|
- | |||||
| 39 | 942845 | Cover, Wiring |
|
- | |||||
| 41 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 41 | WP681414 | Screw (repair) (Replaces: 489254) |
|
Immediately | $ 8.47 | ||||
| 42 | W10812038 | Clip, Wire (4) (Replaces: 939054) |
|
- | |||||
| 43 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 44 | 937360 | Cord, Service |
|
- | |||||
| 45 | 937357 | Clamp |
|
- | |||||
| 46 | 942813 | Fitting, Drain |
|
- | |||||
| 47 | 1106507 | Seal, Gasket |
|
- | |||||
| 49 | 1106511 | Plug Assembly |
|
- | |||||
| 50 | 1120224 | Hole Seal |
|
- | |||||
| 51 | 8316810 | Tube, Drain (Replaces: 509640) |
|
$ 125.72 | |||||
| 52 | 519405 | Clamp |
|
- |
