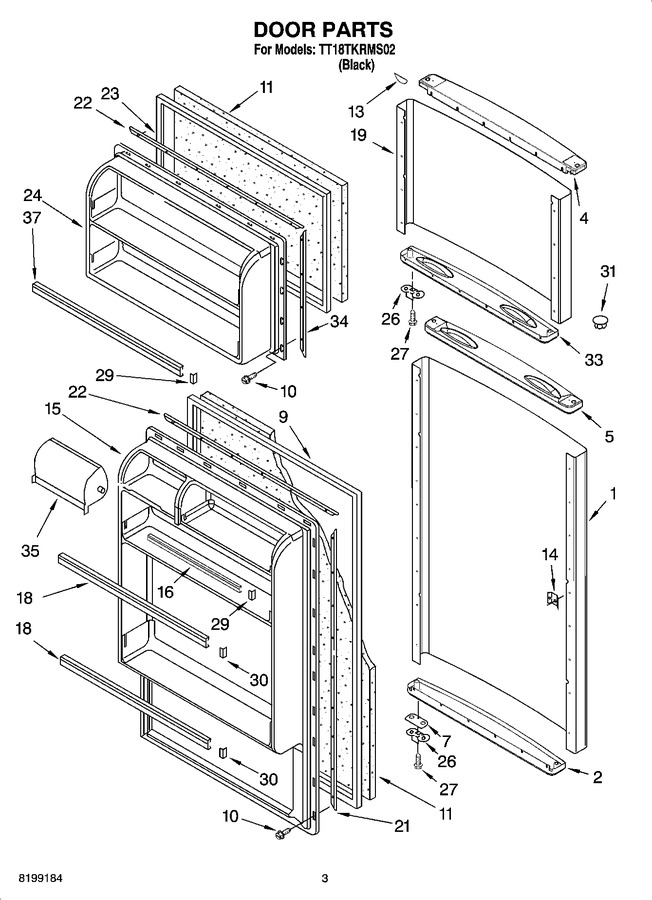

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222038S		Refrigerator Door Panel (includes Items 2 & 5) (also Order Item 11)		Appelez-nous	-
2	2222048		End Cap-bottom		Appelez-nous	-
4	2252863		End Cap-top			Immediately	$ 155.53
5	2222045		Handle (rc Door)				$ 41.70
7	2258681B		Shim, Door Stop				$ 45.33
9	WP2319264B		Door Gasket, Magnetic   (Replaces: 2262082)				$ 323.85
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	2200749		Nameplate		Appelez-nous	-
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
15	2197158		Interior Door Panel (refrigerator)		Appelez-nous	-
16	WP2163629		Trim, Door Shelf   (Replaces: 2163630)			Immediately	$ 63.40
18	2163628		Trim, Door		Appelez-nous	-
19	2222016S		Freezer Door Panel (includes Items 4 & 33) (also Order Item 11)		Appelez-nous	-
21	2197082		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2262083		Door Gasket, Magnetic				$ 124.89
24	2197159		Interior Door Panel (freezer)		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.41
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2212651		Hole Plug   (Replaces: 2212651)				$ 24.21
33	2258858B		Handle (fc Door)		Appelez-nous	-
34	1122553		Retainer, Gasket		Appelez-nous	-
35	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
37	WP2163629		Trim-door (2)   (Replaces: 2163629)			Immediately	$ 63.40
