SELECT A DIAGRAM

01 - Cabinet Parts

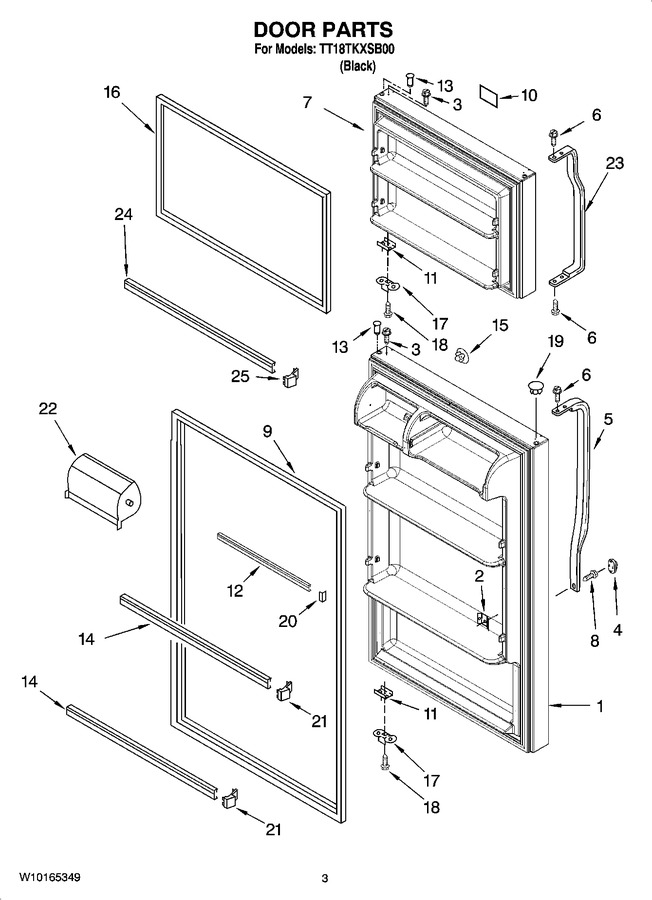

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2264750B		Refrigerator Door (includes Illus. 2,9, 11 & 13)		Appelez-nous	-
2	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP2202819B		Cover, Screw   (Replaces: 2202819B)				$ 11.43
5	WP2326169B		Handle, Refrigerator   (Replaces: 2326169B)				$ 154.75
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
7	2263254B		Freezer Door (includes Illus. 11,13 & 16)		Appelez-nous	-
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	WP2319264B		Door Gasket, Magnetic   (Replaces: 2264723)				$ 323.85
10	W10154383		Nameplate		Appelez-nous	-
11	2183000		Tap Plate				$ 36.19
12	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 127.34
13	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
14	WP2266738		Trim, Door Shelf (wide)   (Replaces: 2266738)				$ 111.69
15	WP2189009		Hole Plug, Handle   (Replaces: 2189009)				$ 7.61
16	WP2319263B		Door Gasket, Magnetic   (Replaces: 2264722)			Immediately	$ 268.28
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
18	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
19	WP2212651		Hole Plug (2)   (Replaces: 2212651)				$ 24.21
20	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
21	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 13.18
22	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
23	2202098B		Handle, Freezer				$ 151.23
24	WP2266727		Trim, Door Narrow   (Replaces: 2266727)			Immediately	$ 92.50
25	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25

    View Diagram in Separate Window       Print Part List
