SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door, Lit/optional

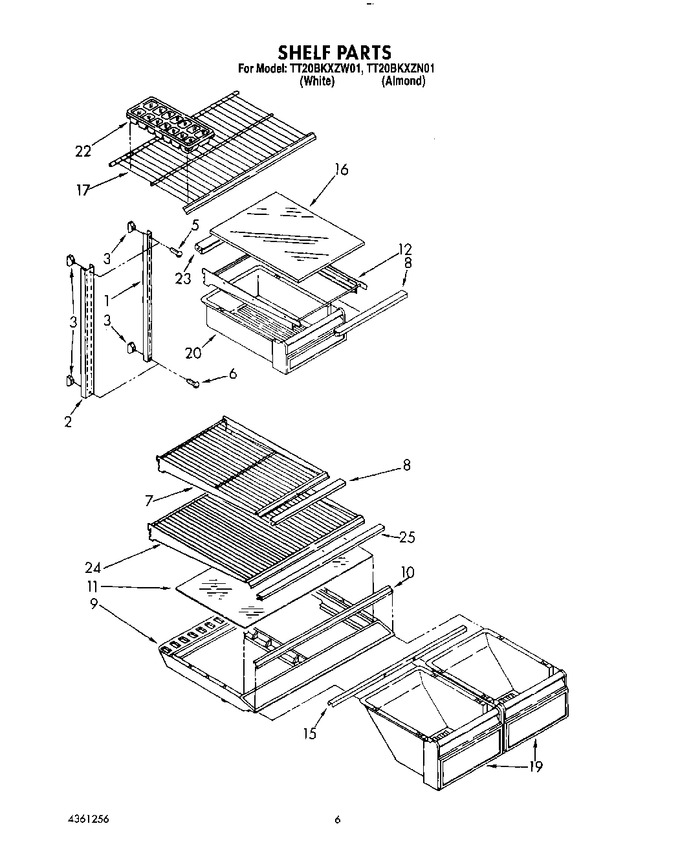

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4) Center (2)				$ 31.35
5	489345		Screw (3)		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
7	1110738		Shelf, Cantilever		Appelez-nous	-
8	1110742		Trim, Shelf		Appelez-nous	-
9	2151749		Crisper Cover				$ 126.96
10	1105649		Trim, Crisper Cover		Appelez-nous	-
11	1106929		Glass, Crisper Cover		Appelez-nous	-
12	1110756		Pan Shelf, Cantilever		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 1106613)				$ 102.08
16	1114474		Glass, Shelf		Appelez-nous	-
17	1106615		Shelf, Freezer		Appelez-nous	-
19	1114361		Pan, Crisper		Appelez-nous	-
20	2151751		Pan, Meat		Appelez-nous	-
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
23	1110744		Retainer, Glass		Appelez-nous	-
24	1120135		Shelf, Full Length Cantilever		Appelez-nous	-
25	1114436		Trim, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
