SELECT A DIAGRAM

01 - Motor And Drive, Lit/optional


02 - Frame


03 - Power Screw And Ram


04 - Container


05 - Panel And Control

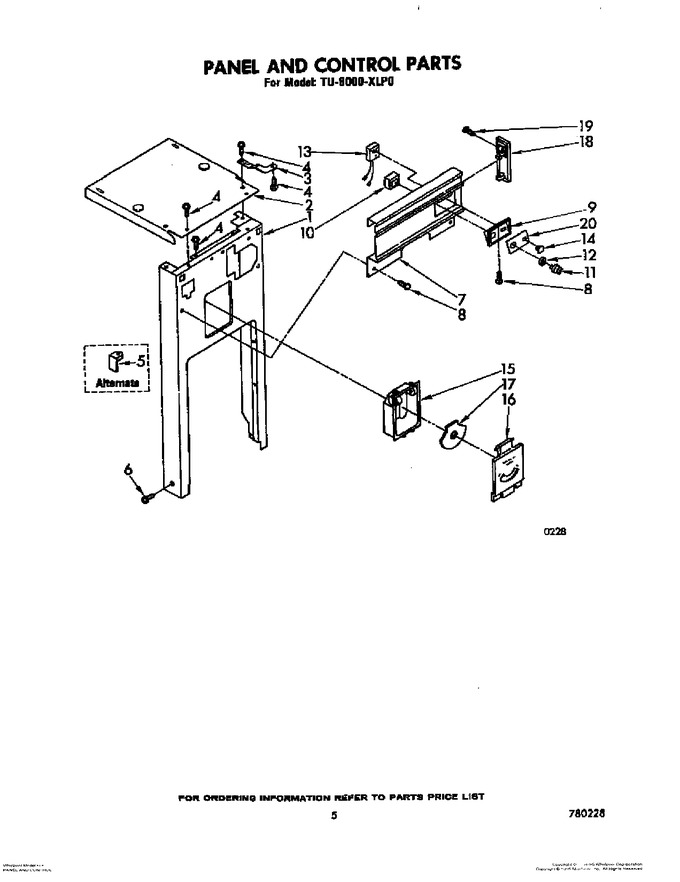

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608778		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top (recessed)   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 608785)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 608784)			Immediately	$ 24.48
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 8.18
5	WP780239		Bracket, Mounting (2) (auxiliary)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	780183		Escutcheon, Harold Brown		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	780190		Bezel, Switch		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608452)				$ 246.48
11	780191		Knob, Rotary Switch		Appelez-nous	-
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 12.83
13	777323		Light, Indicator		Appelez-nous	-
14	777322		Lens, Indicator		Appelez-nous	-
15	777642		Compartment, Air Flow		Appelez-nous	-
16	608783		Cover, Air Flow		Appelez-nous	-
17	608782		Dail, Air Flow		Appelez-nous	-
18	780179		End Cap, Escutcheon (l.h.)		Appelez-nous	-
18	780180		End Cap, Escutcheon R.h.		Appelez-nous	-
19	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
20	780186		Inset, Bezel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
