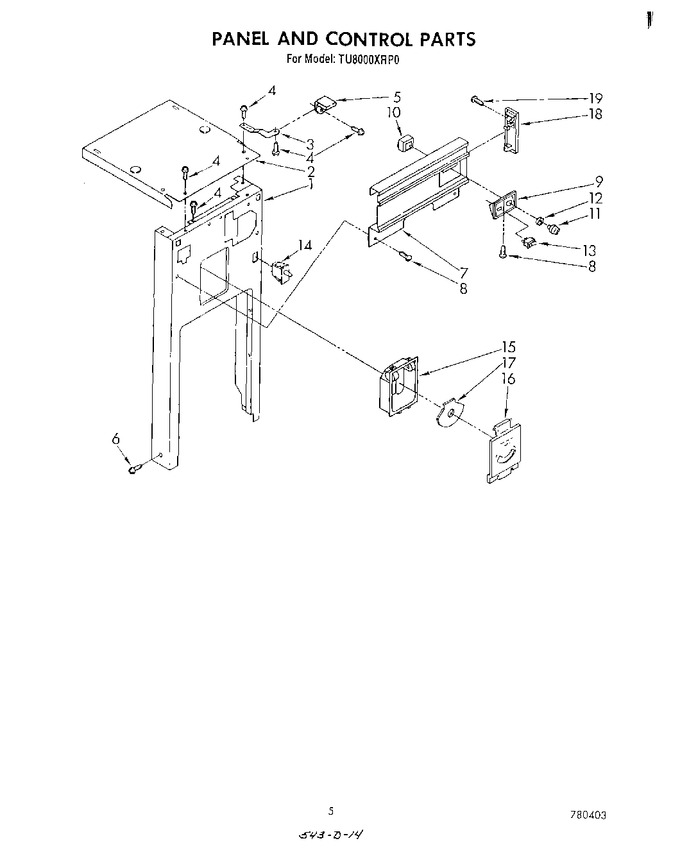

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	608846		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 608785)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 608784)			Immediately	$ 24.48
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 8.18
5	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	780390		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	780387		Bezel, Switch		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 246.48
11	776594		Knob, Switch   (Replaces: 780392)				$ 30.27
12	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
13	WP4314961		Switch, Rocker   (Replaces: 780398)				$ 93.95
14	780421		Switch, Drawer Tilt		Appelez-nous	-
15	777642		Compartment, Air Flow		Appelez-nous	-
16	608783		Cover, Air Flow		Appelez-nous	-
17	608782		Dail, Air Flow		Appelez-nous	-
18	780180		End Cap, R.h.		Appelez-nous	-
18	780179		End Cap, L.h.		Appelez-nous	-
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
19	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
19	261888		Touch-up 1/2 Oz. (avocado)		Appelez-nous	-
19	285006		Touch-up 1/2 Oz. (black)				$ 59.89
19	261886		Touch-up 1/2 Oz. (coffee)		Appelez-nous	-
19	261890		Touch-up 1/2 Oz. (golden Wheat)		Appelez-nous	-
19	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
19	675167		Touch-up 1/2 Oz. (primer (tan))		Appelez-nous	-
19	978726		Touch-up 1/2 Oz. (stanford Brown)		Appelez-nous	-
19	285365		Touch-up 1/2 Oz. (toast)		Appelez-nous	-
19	350956		Touch-up 1/2 Oz. (almond)				$ 54.01
19	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 8.40
19	777635		Deodorizer, Solid Stick-ups (2-pack)		Appelez-nous	-
19	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
19	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
19	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
19	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
19	DD81-03505A		Paint, Touch-up 1/2 Oz. (stanford Brown)   (Replaces: 72106)				$ 121.47
19	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
