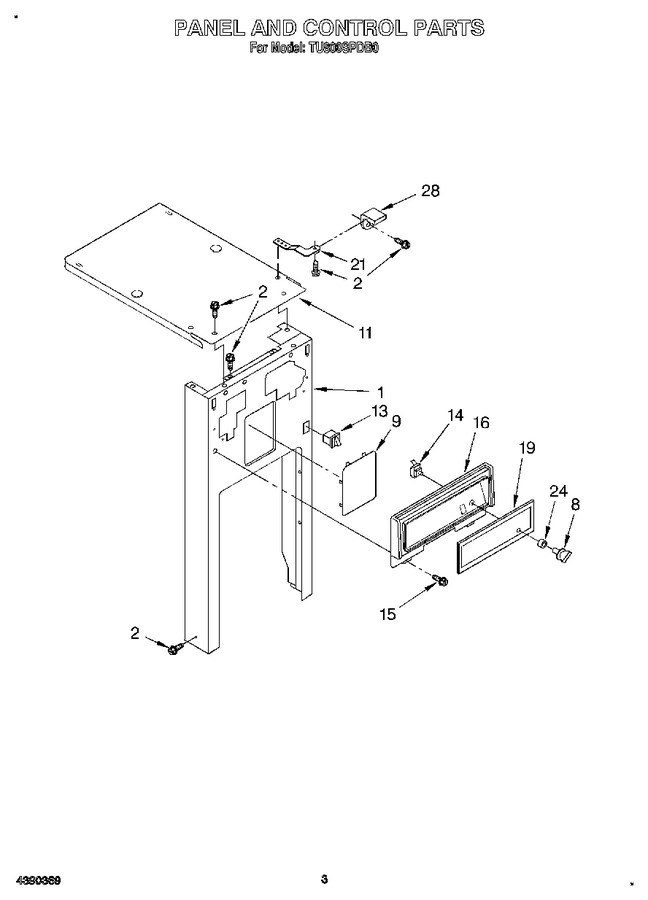

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9870913		Front   (Replaces: 9870913)				$ 298.34
1	9871072		Panel				$ 246.38
2	WP489069		Screw, 8 X 1/2ab   (Replaces: 776076)			Immediately	$ 8.40
8	9871257		Knob, Switch				$ 26.67
9	9871160		Plate, Cover		Appelez-nous	-
11	W11684543		Cover, Top (recessed)   (Replaces: 608572)		Appelez-nous	-
13	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
14	675382		Switch, Rotary   (Replaces: 608824)				$ 246.48
15	776559		Screw, 6-20 X 3/8ab		Appelez-nous	-
16	4151493		Escutcheon, Control		Appelez-nous	-
19	9871208		Insert, Decorative		Appelez-nous	-
21	W11729437		Bracket, Retainer (r.h.)   (Replaces: 9870157)			Immediately	$ 24.48
21	W11729437		Bracket, Retainer (l.h.)   (Replaces: 9870158)			Immediately	$ 24.48
24	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
28	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53

    View Diagram in Separate Window       Print Part List
