01 - Motor And Drive, Literature
02 - Frame
03 - Panel And Control
04 - Powerscrew And Ram
05 - Container
06 - Accessory
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

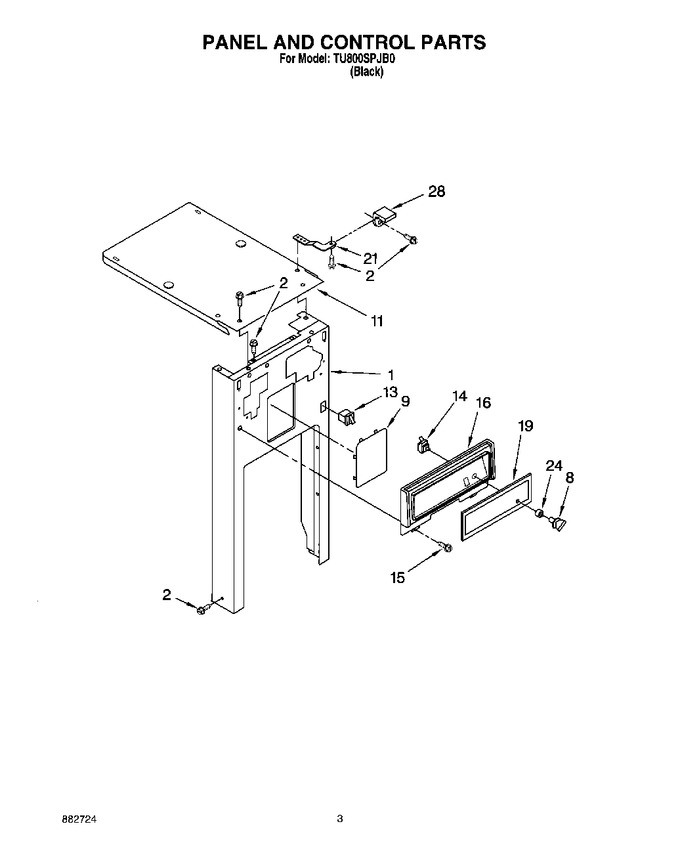

| 1 | 9871072 | Panel, Front |
|
$ 246.38 | |||||
| 2 | WP489478 | Screw, 8 X 1/2 Ab (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | WP9870487 | Knob, Switch (Replaces: 9870487) |
|
$ 66.00 | |||||
| 9 | 9871160 | Plate, Cover |
|
- | |||||
| 11 | W11684543 | Cover, Top (recessed) (Replaces: 608572) |
|
- | |||||
| 13 | WP4387911 | Switch, Drawer Tilt (Replaces: 4152058) |
|
Immediately | $ 41.64 | ||||
| 14 | 675382 | Switch, Rotary (Replaces: 608824) |
|
$ 246.48 | |||||
| 15 | 777849 | Screw, 6-20 X 1 |
|
$ 7.36 | |||||
| 16 | 9871591 | Escutcheon, Control |
|
- | |||||
| 19 | 9871596 | Insert, Decorative |
|
- | |||||
| 21 | W11729437 | Bracket, Retainer (l.h.) (Replaces: 9870158) |
|
Immediately | $ 24.48 | ||||
| 21 | W11729437 | Bracket, Retainer (r.h.) (Replaces: 9870157) |
|
Immediately | $ 24.48 | ||||
| 24 | WP777383 | Nut, Rotary Switch (Replaces: 777383) |
|
$ 12.83 | |||||
| 28 | WP780239 | Bracket, Mounting (2) (alternate) (Replaces: 780239) |
|
$ 28.53 |
