SELECT A DIAGRAM

01 - Motor And Drive, Lit/optional


02 - Frame


03 - Powerscrew And Ram


04 - Container

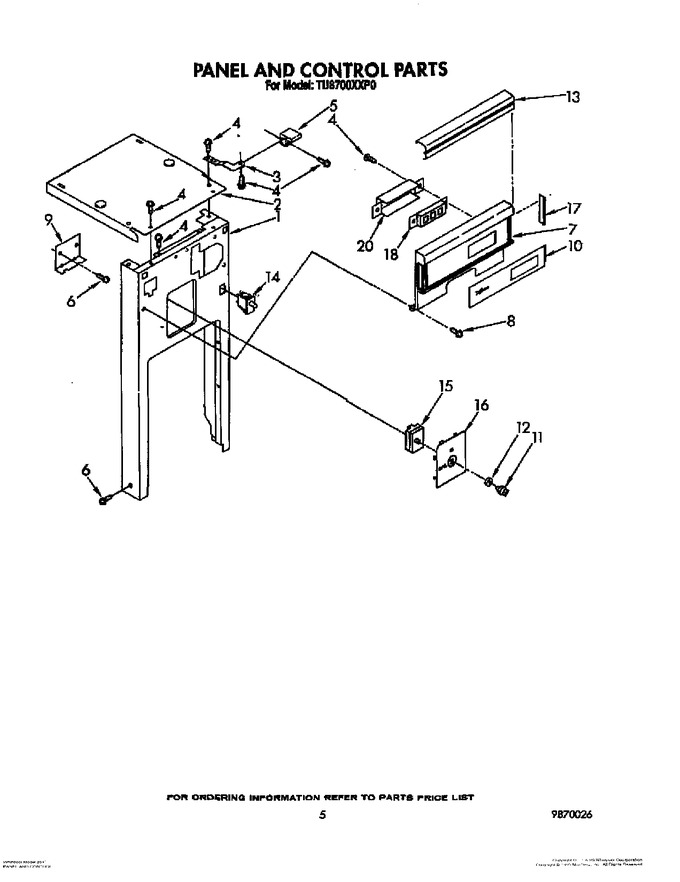

05 - Panel And Control


06 - Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4152069		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 780465)			Immediately	$ 24.48
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 780464)			Immediately	$ 24.48
4	777459		Screw, 8-18 X 1/2		Appelez-nous	-
5	WP780239		Bracket, Mounting (2) (alternate)   (Replaces: 780239)				$ 28.53
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 8.40
7	4154909		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	9870125		Bracket, Protector		Appelez-nous	-
10	4154904		Insert, Decorative		Appelez-nous	-
11	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 59.68
12	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
13	4154862		Trim, Top		Appelez-nous	-
14	WP4387911		Switch, Drawer Tilt   (Replaces: 4152058)			Immediately	$ 41.64
15	777380		Switch, Rotary				$ 162.31
16	9871161		Plate, Switch   (Replaces: 9870121)				$ 95.20
17	4154910		Trim, Side		Appelez-nous	-
18	W10856868		Assembly, Switch   (Replaces: 4154870)		Appelez-nous	-
20	9870123		Shield, Switch		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
