Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3370378 Console Appelez-nous -
2 3370256 Insert, Console Appelez-nous -
3 WP4314961 Switch, Rocker   (Replaces: 3370296) Special Order $ 93.95

4 3368997 Follower, Cam Special Order $ 35.20

5 3369204 Timer Appelez-nous -
6 3368996 Cam Appelez-nous -
7 WP304231 Screw, 8-18 X 1/2 (3)   (Replaces: 304231) In-Stock Immediately $ 8.14

8 3368900 Door Frame Appelez-nous -
9 WP3380854 Bolt, Latch   (Replaces: 3368953) Special Order $ 101.73

10 WP3368954 Lever, Latch   (Replaces: 3368954) Special Order $ 8.70

11 3369325 Switch, (2) Appelez-nous -
12 3368955 Pin, Switch (2) Special Order $ 7.75

13 3370455 Harness And Protector Appelez-nous -
14 3368977 Elbow, Harness Appelez-nous -
15 WP488234 Screw, 8-32 X 1/4   (Replaces: 9412221) Special Order $ 7.08

16 3369192 Cover, Timer Appelez-nous -
17 3370254 Knob, Timer Appelez-nous -
18 3368979 Spacer, Corrugated Special Order $ 38.99

19 3369851 Front Panel Appelez-nous -
20 3370441 Retainer, Panel Special Order $ 39.48

21 WP98997 Clip, Harness   (Replaces: 98997) Special Order $ 11.64


    View Diagram in Separate Window     Print Icon   Print Part List

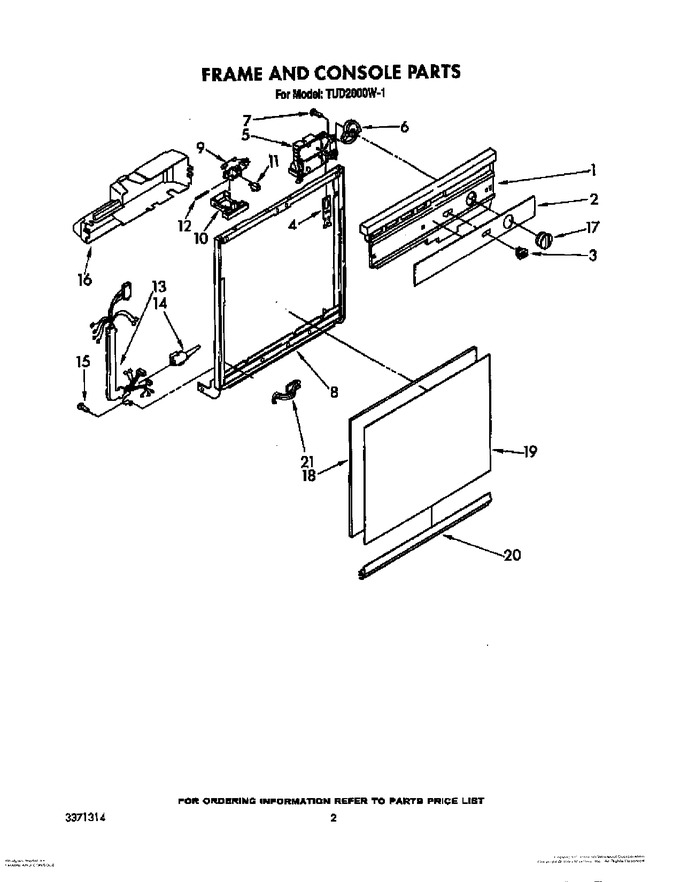

Diagram for TUD2000W1
