Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3370383 Console (incl. Illus. 2) Appelez-nous -
2 3370558 Insert, Console Appelez-nous -
3 3370557 Switch, 3-pushbutton Appelez-nous -
4 3368997 Follower, Cam Special Order $ 35.20

5 3369540 Timer Appelez-nous -
6 3368996 Cam Appelez-nous -
7 WP304231 Screw, 8-18 X 1/2 (3)   (Replaces: 304231) In-Stock Immediately $ 8.14

8 3368900 Door Frame Appelez-nous -
9 WP3380854 Bolt, Latch   (Replaces: 3368953) Special Order $ 101.73

10 WP3368954 Lever, Latch   (Replaces: 3368954) Special Order $ 8.70

11 3368946 Switch, (2) Appelez-nous -
12 3368955 Pin, Switch (2) Special Order $ 7.75

13 3369772 Harness And Protector Appelez-nous -
14 3368977 Elbow, Harness Appelez-nous -
15 WP488234 Screw, 8-32 X 1/4   (Replaces: 9412221) Special Order $ 7.08

16 3369192 Cover, Timer Appelez-nous -
17 3370609 Knob, Timer Appelez-nous -
18 3368979 Spacer, Corrugated Special Order $ 38.99

19 3368980 Front Panel (almond/black) Appelez-nous -
20 3369514 Retainer, Panel Appelez-nous -
21 WP304231 Screw (2)   (Replaces: 304231) In-Stock Immediately $ 8.14


    View Diagram in Separate Window     Print Icon   Print Part List

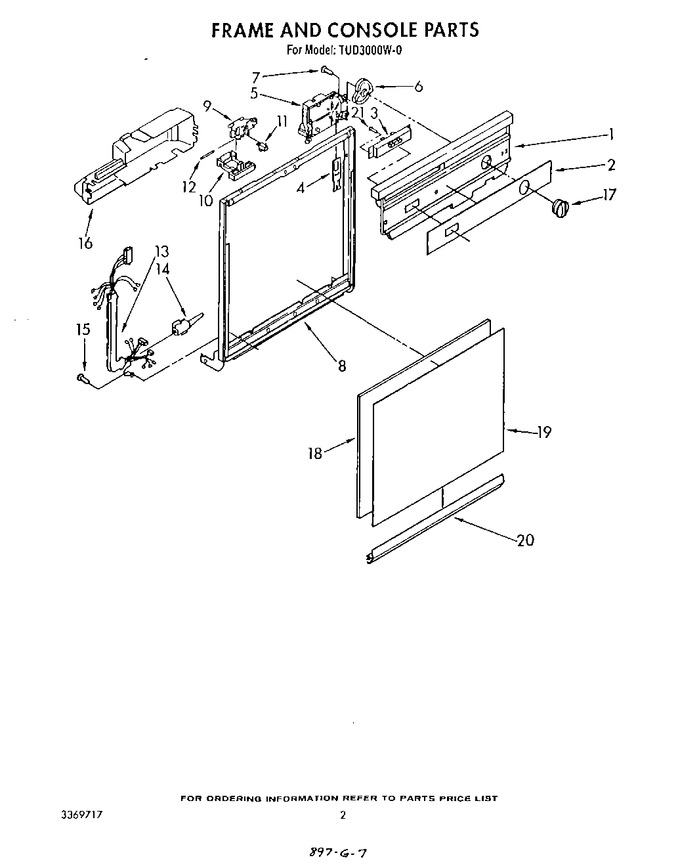

Diagram for TUD3000W0
