SELECT A DIAGRAM

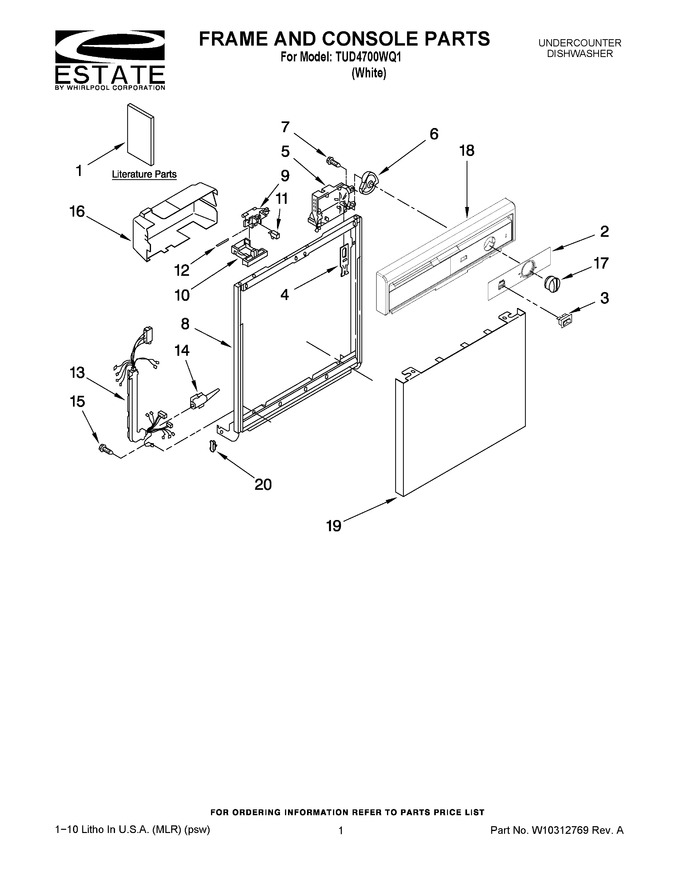

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130976		Guide, Use & Care (english/french)		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10240238		Energy Guide		Appelez-nous	-
1	W10255095		Insert-install		Appelez-nous	-
1	W10133151		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10039930		Diagram, Wiring		Appelez-nous	-
2	W10240223		Insert, Console (white)		Appelez-nous	-
3	8051730		Switch, Rocker (white)				$ 83.48
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WPW10199588		Timer   (Replaces: W10039490)				$ 351.31
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (includes Item 21) (white)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 101.73
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch		Appelez-nous	-
12	3368955		Pin, Switch				$ 7.75
13	8573186		Harness And Protector				$ 162.29
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8051644		Cover, Control		Appelez-nous	-
17	3375349		Knob, Timer (white)				$ 46.12
18	W10254725		Console (includes Item 2) (white)				$ 115.74
19	3379376		+front Panel (white)				$ 116.81
20	WP3373234		Bearing, Spring   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
