01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Spray Arm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

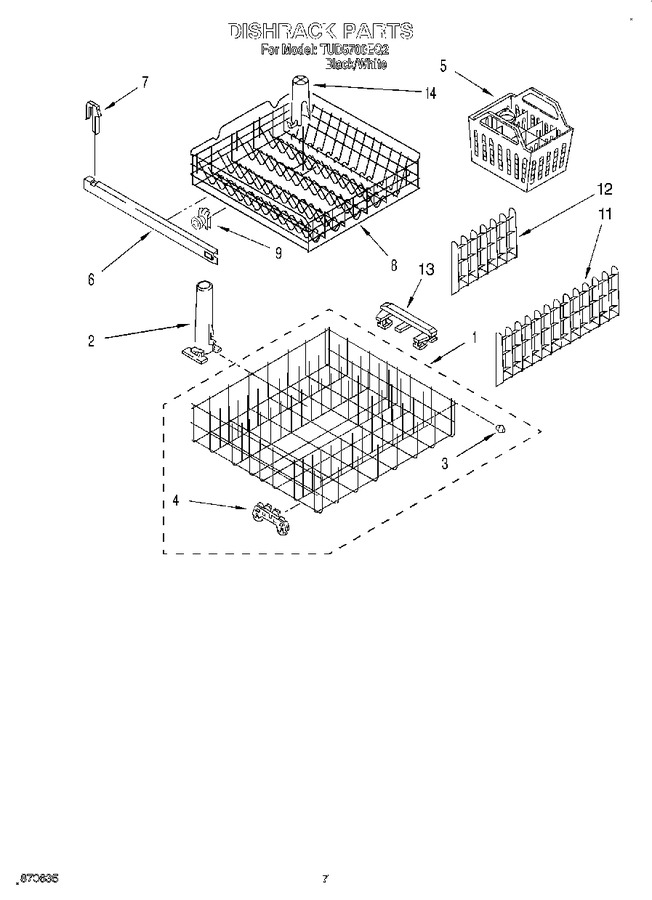

| 1 | W10311986 | Lower Dishrack Assembly (Replaces: 3370490) |
|
Immediately | $ 169.33 | ||||
| 2 | WP8268825 | Tower, Protector (Replaces: 3369761) |
|
$ 98.01 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 3368006) |
|
$ 85.34 | |||||
| 4 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3376961) |
|
$ 88.82 | |||||
| 5 | 4171564 | Basket, Silverware |
|
- | |||||
| 6 | WP3385089 | Track, Dishrack (2) (Replaces: 9742998) |
|
Immediately | $ 72.00 | ||||
| 7 | 3379941 | Stop, Track (4) |
|
$ 42.08 | |||||
| 8 | W11169039 | Dishrack, Upper (Replaces: 3371663) |
|
Immediately | $ 182.83 | ||||
| 9 | 3380863 | Wheel & Axle Assembly (4) |
|
- | |||||
| 11 | 3371265 | Cupshelf, Large (2) |
|
- | |||||
| 12 | WP8268828 | Cupshelf, Small (2) (Replaces: 3371264) |
|
$ 122.30 | |||||
| 13 | WP3357331 | Clip, Cupshelf (6) (Replaces: 3369913) |
|
$ 7.37 | |||||
| 14 | 3371908 | Diffuser, Water |
|
- |
