SELECT A DIAGRAM

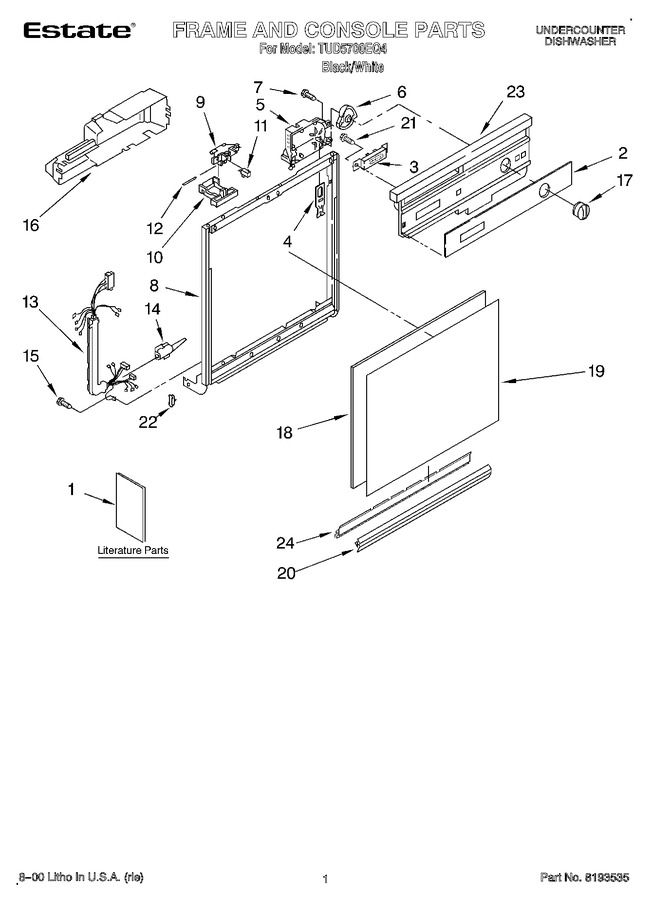

01 - Frame And Console, Literature


02 - Inner Door


03 - Tub Assembly


04 - Pump And Sprayarm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3379054		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
1	LIT8051229		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT8274629		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT3376823		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	3379485		Insert, Console		Appelez-nous	-
3	3379040		Switch, 7-pushbutton		Appelez-nous	-
4	3368997		Follower, Cam				$ 35.20
5	WP8535368		Timer   (Replaces: 3376032)				$ 310.77
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.06
7	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 7.33
8	3374712		Door Frame (includes Item 24)				$ 141.54
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 91.56
10	WP3368954		Lever, Latch   (Replaces: 3369573)				$ 7.83
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3376036		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 7.42
16	3373367		Cover Timer		Appelez-nous	-
17	3369611		Knob, Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Front Panel (black/white)   (Replaces: 3369769)				$ 53.48
20	3374011		Retainer, Panel				$ 59.30
21	WP304231		Screw (2)   (Replaces: 304231)			Immediately	$ 7.33
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 9.91
23	3378782		Console (includes Item 2)		Appelez-nous	-
24	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 90.20

    View Diagram in Separate Window       Print Part List
