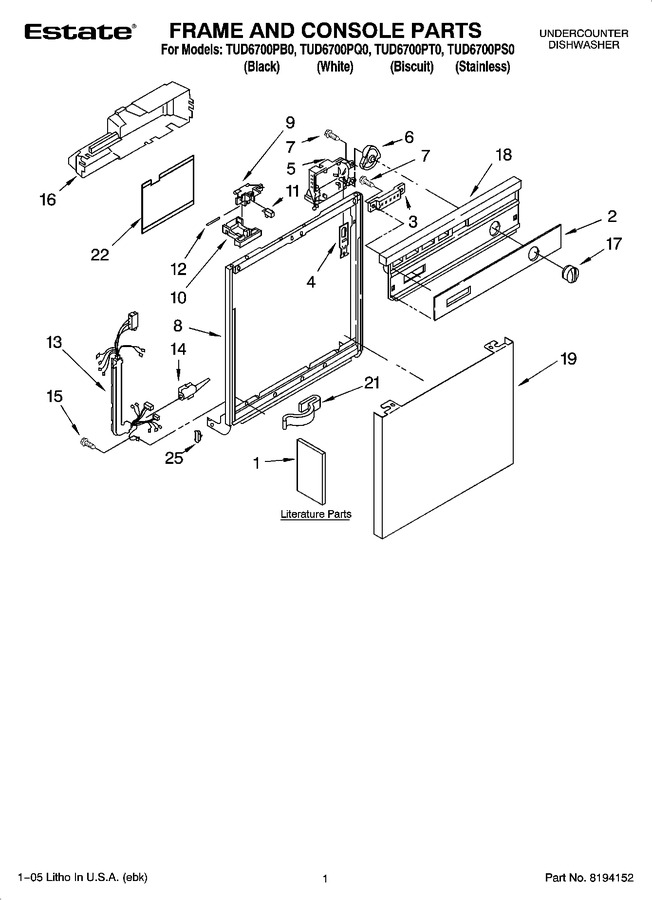

01 - Frame And Console Parts
02 - Inner Door Parts
03 - Tub Assembly Parts
04 - Pump And Motor Parts
05 - Dishrack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8275137 | Diagram, Wiring |
|
- | |||||
| 1 | 677967 | Do-it Yourself Manual |
|
- | |||||
| 1 | 3385181 | Instructions, Installation |
|
- | |||||
| 1 | 8535651 | Guide, Energy |
|
- | |||||
| 1 | 3385811 | Guide, Use & Care |
|
- | |||||
| 2 | 3385852 | Insert, Console (biscuit) |
|
- | |||||
| 2 | 3385851 | Insert, Console (white) |
|
- | |||||
| 2 | 3385850 | Insert, Console (black) |
|
- | |||||
| 3 | 3375066 | Switch, 7 Button |
|
- | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 65.43 | |||||
| 5 | WP8535371 | Timer (Replaces: 8535371) |
|
$ 399.45 | |||||
| 6 | 3378124 | Cam |
|
$ 5.75 | |||||
| 7 | 9743028 | Door Frame (black) |
|
$ 62.19 | |||||
| 7 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3372231 | Lever, Latch White |
|
- | |||||
| 10 | 3375062 | Lever, Latch (biscuit) |
|
$ 37.58 | |||||
| 10 | 3369457 | Lever, Latch (black) |
|
$ 5.84 | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 8275125 | Harness And Protector |
|
$ 123.05 | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | 8269526 | Cover, Timer |
|
- | |||||
| 17 | 3375349 | Knob, Timer (white) |
|
$ 46.12 | |||||
| 17 | 8274849 | Knob, Timer (biscuit) |
|
- | |||||
| 17 | 3375348 | Knob, Timer (black) |
|
$ 64.33 | |||||
| 18 | 3385848 | Console (includes Item 2) (white) |
|
- | |||||
| 18 | 3385849 | Console (includes Item 2) (biscuit) |
|
- | |||||
| 18 | 3385847 | Console (includes Item 2) (black) |
|
- | |||||
| 19 | 3379376 | Panel Front (white) |
|
$ 116.81 | |||||
| 19 | 8054178 | Panel, Front (biscuit) |
|
$ 111.70 | |||||
| 19 | 9743581 | Panel, Front (stainless) |
|
- | |||||
| 19 | 3379375 | Panel Front (black) |
|
$ 115.07 | |||||
| 21 | WP3400935 | Clip, Harness (Replaces: 3400935) |
|
$ 10.20 | |||||
| 22 | 3379671 | Shield, Control Cover |
|
- | |||||
| 25 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 11.01 |
