View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Frame And Console
02 - Inner Door
03 - Tub Assembly
04 - Pump And Spray Arm
05 - Pump And Motor, Miscellaneous
06 - Dishrack
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

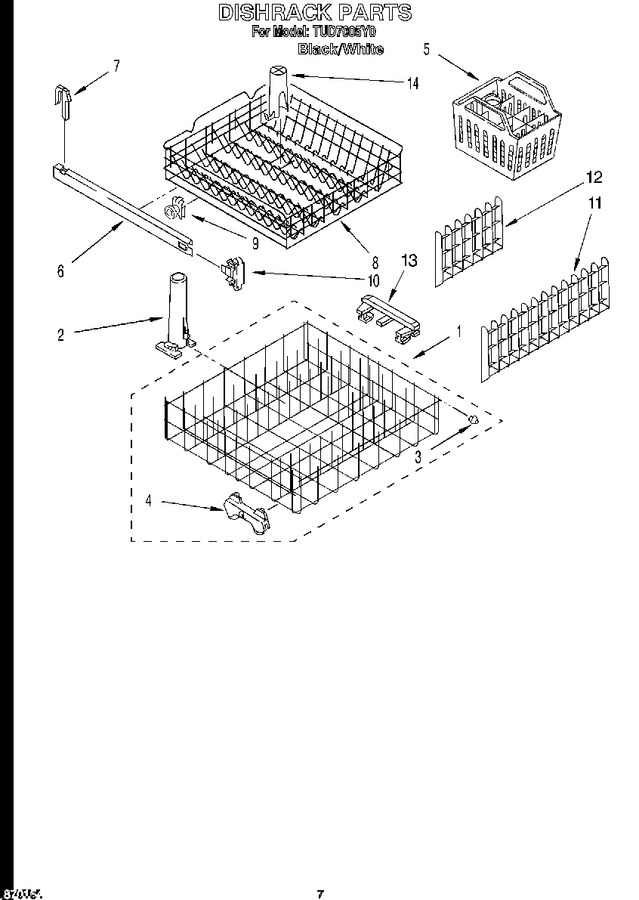

| 1 | W10311986 | Lower Dishrack Assembly (Replaces: 3370490) |
|
Immediately | $ 169.33 | ||||
| 2 | WP8268825 | Tower, Protector (Replaces: 3369761) |
|
$ 98.01 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 3368006) |
|
$ 85.34 | |||||
| 4 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 88.82 | |||||
| 5 | 4171564 | Basket, Silverware |
|
- | |||||
| 6 | 3369071 | Track, Dishrack (2) |
|
- | |||||
| 7 | 3369046 | Stop, Track (2) |
|
- | |||||
| 8 | W11169039 | Dishrack, Upper (Replaces: 3371663) |
|
Immediately | $ 182.83 | ||||
| 9 | 3371581 | Wheel & Axle Assembly (4) |
|
- | |||||
| 10 | 300845 | End Cap, Track (2) |
|
$ 7.63 | |||||
| 11 | 3371265 | Cupshelf, Large (2) |
|
- | |||||
| 12 | WP8268828 | Cupshelf, Small (2) (Replaces: 3371264) |
|
$ 122.30 | |||||
| 13 | WP3357331 | Clip, Cupshelf (6) (Replaces: 3369913) |
|
$ 7.37 | |||||
| 14 | 3371908 | Diffuser, Water |
|
- | |||||
| 676458 | Tine Tip Repair Kit (grey Enough For Two Complete Dishracks) |
|
$ 43.49 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 4317931 | Platinum |
|
- | ||||||
| 4318050 | Door Spring Kit (heavy Duty) |
|
$ 23.68 | ||||||
| W10840471 | Vinyl Touch-up (blue) (Replaces: 675576) |
|
$ 42.89 | ||||||
| 675677 | Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks) |
|
- | ||||||
| WP676453 | Vinyl Touch-up (white) (Replaces: 676453) |
|
Immediately | $ 48.29 | |||||
| 675679 | Tine Tip Repair Kit (white - Enough For Two Complete Dishracks) |
|
Immediately | $ 34.95 | |||||
| WP676455 | Vinyl Touch-up (grey) (Replaces: 676455) |
|
Immediately | $ 41.27 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 48.61 | ||||||
| LIT3369679 | Instructions, Installation |
|
- | ||||||
| LIT3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| LIT3373486 | Energy Guide |
|
- | ||||||
| LIT3373749 | Guide, Use & Care |
|
- | ||||||
| LIT3373619 | Wiring Diagram |
|
- | ||||||
| LIT0677967 | Do-it Yourself Manual |
|
- | ||||||
| 285006 | Paint, Spray 13 Oz. (black) |
|
$ 53.90 | ||||||
| 350942 | Primer (white) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 799340 | Black (uncut) |
|
- | ||||||
| 4317925 | Side Panel Kit (white) |
|
- | ||||||
| 4317926 | Avocado |
|
- | ||||||
| 4317927 | Gold |
|
- | ||||||
| 4317929 | Side Panel Kit: (almond) |
|
- | ||||||
| 4317930 | Toast |
|
- |
