SELECT A DIAGRAM

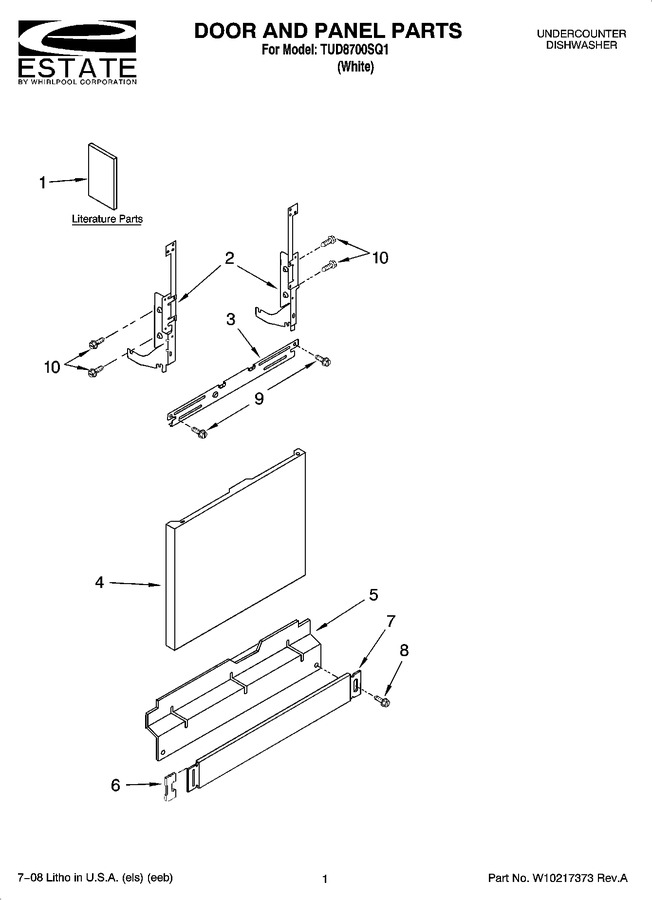

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130990		Tech Sheet (english/french)		Appelez-nous	-
1	W10175255		Energy Guide		Appelez-nous	-
1	W10130975		Guide, Use & Care English/french		Appelez-nous	-
1	W10133150		Guide, Use & Care Spanish		Appelez-nous	-
1	W10142914		Instructions, Installation		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 75.54
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 64.59
3	8268983		Stiffener, Door				$ 38.77
4	8269842		Panel Front (includes 6)		Appelez-nous	-
5	WPW10441007		Access Panel   (Replaces: 8573256)				$ 153.85
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.09
7	WP8573287		Toe Panel (includes 6)   (Replaces: 8573287)				$ 159.92
8	WP3400836		Screw   (Replaces: 3400836)				$ 7.29
9	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.62
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92

    View Diagram in Separate Window       Print Part List
