01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts

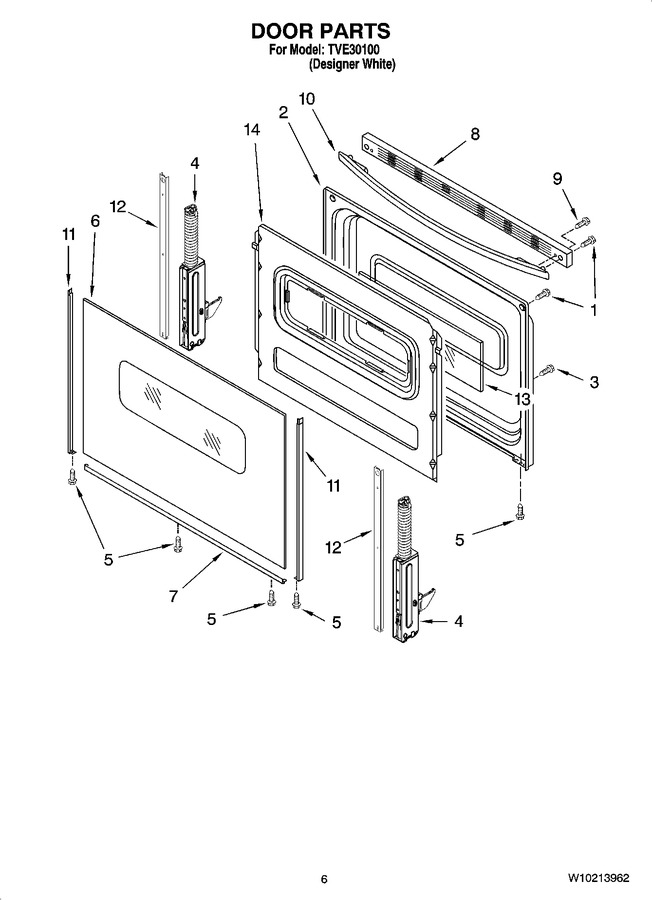

05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 2 | 9761340 | Liner |
|
$ 325.01 | |||||
| 3 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 4 | W10347465 | Hinge (2) (Replaces: 9761494) |
|
$ 108.34 | |||||
| 5 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 6 | WP9762476 | Glass, Outer (Replaces: 9762476) |
|
$ 299.39 | |||||
| 7 | W11594186 | Trim, Lower (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 8 | W10016370 | Trim, Door Top |
|
$ 79.85 | |||||
| 9 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 10 | W10202219 | Handle, Oven Door |
|
$ 265.19 | |||||
| 11 | WP8523172 | Trim, Door (lh White) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 11 | WP8523166 | Trim, Door (rh White) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 13 | WP9758163 | Glass, Inner (Replaces: 9758163) |
|
$ 145.91 | |||||
| 14 | 9761500 | Retainer, Insul. |
|
$ 293.06 | |||||
| W11244557 | Screw, Ground (Replaces: 3196173) |
|
$ 12.86 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 9756350 | Cord - Power 240v |
|
$ 60.82 | ||||||
| 9756779 | Strain Relief |
|
- | ||||||
| W10137379 | Harness, Main (Replaces: W10036240) |
|
$ 272.42 | ||||||
| WPW10295595 | Harness, Cooktop (Replaces: W10196279) |
|
Immediately | $ 140.45 | |||||
| WP3196154 | Screw, Grnd-cktop (Replaces: 3196154) |
|
$ 7.60 | ||||||
| WP3196174 | Screw, Grnd-back (Replaces: 3196174) |
|
Immediately | $ 7.60 | |||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 78.23 | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 78.50 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 24.99 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 46.58 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 3184478 | Cleaner, Glass |
|
- | ||||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 54.64 | |||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 25.69 |
