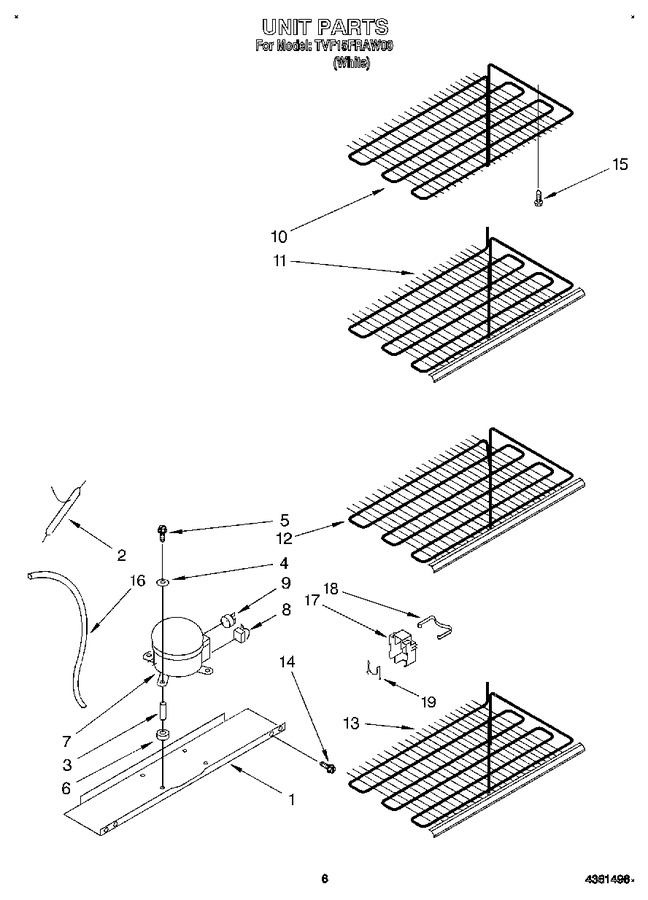

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356983		Compressor Mounting Pan		Appelez-nous	-
2	W10843121		Drier Assembly   (Replaces: 4356845)			Immediately	$ 57.13
3	4356846		Compressor Grommet Sleeve				$ 15.00
4	4356847		Washer		Appelez-nous	-
5	4356852		Compressor Mounting Screw				$ 6.57
6	4356855		Compressor Grommet		Appelez-nous	-
7	W10439652		Compressor   (Replaces: 4356987)				$ 442.20
8	4356857		Relay		Appelez-nous	-
9	4356331		Overload		Appelez-nous	-
10	488946		Evaporator Top   (Replaces: 4356859)				$ 21.47
11	4357009		Evaporator Shelf (one)		Appelez-nous	-
12	4356864		Evaporator Shelf (two)		Appelez-nous	-
13	4356866		Evaporator Shelf (three)		Appelez-nous	-
14	WP3-24838-048		Compressor Pan Screw   (Replaces: 4356820)				$ 8.33
15	4356851		Evaporator, Mounting Screw		Appelez-nous	-
16	4356990		Heat Exchanger		Appelez-nous	-
17	4356946		Cover		Appelez-nous	-
18	4356951		Cover Clip		Appelez-nous	-
19	4356945		Overload Spring		Appelez-nous	-
