Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 DE31-90057A Blade, Fan Special Order $ 19.53

2 W10284507 Assembly, Fan Appelez-nous -
3 8206562 H.v. Capacitor   (Replaces: 2501-001016) In-Stock Immediately $ 120.92

4 DE61-50170A H.v.c Bracket Appelez-nous -
5 W10131652 Assembly, Leadwire Appelez-nous -
6 DE96-00399B Filter, Noise Special Order $ 78.03

7 DE59-00002A H.v. Diode Cable In-Stock Immediately $ 22.91

8 W10320547 Power Cord Appelez-nous -
9 DE47-20030A Thermostat Special Order $ 19.53

10 4713-001012 Lamp, Baseless Special Order $ 40.81

11 DE71-00012A Duct, Air Appelez-nous -
12 ABC20 Fuse   (Replaces: 3601-001198) In-Stock Immediately $ 11.46

13 WPW10126794 Assy., Mgt   (Replaces: W10126794) Special Order $ 329.26

14 DE31-10155T Motor, Fan Special Order $ 101.72


    View Diagram in Separate Window     Print Icon   Print Part List

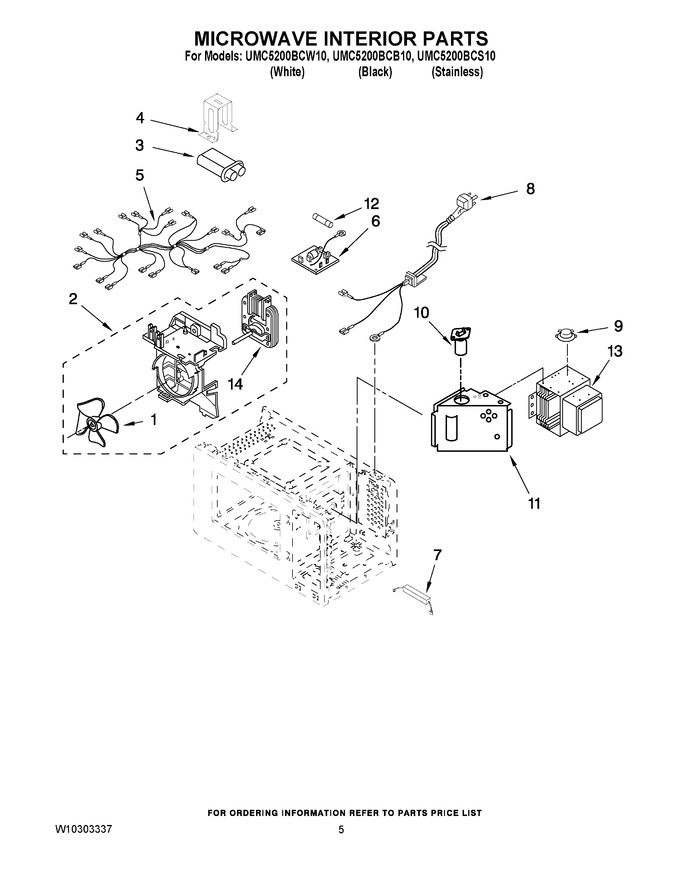

Diagram for UMC5200BCB10
