01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Icemaker Parts
07 - Freezer Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:

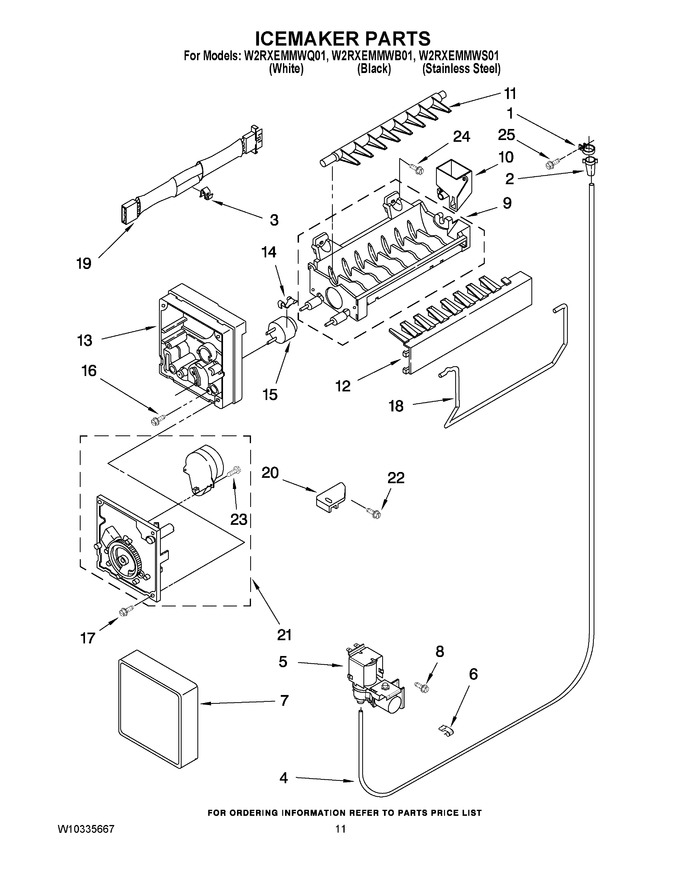

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 12.18 | |||||
| 2 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 32.41 | ||||
| 5 | WP2315576 | Valve Solenoid (Replaces: 2315576) |
|
Immediately | $ 98.12 | ||||
| 6 | 2210495 | Clip, Water Valve |
|
- | |||||
| 7 | WPW10289690 | Cover (Replaces: 2210484) |
|
Immediately | $ 8.82 | ||||
| 8 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Sillicone Grease) (Replaces: W10122527) |
|
$ 233.52 | |||||
| 10 | W10122561 | Cup, Water Fill |
|
$ 29.16 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Aluminlastic) (Replaces: W10290336) |
|
$ 114.64 | |||||
| 16 | 8533917 | Screw |
|
$ 14.04 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 18 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 88.76 | |||||
| 19 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 130.80 | |||||
| 20 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 21 | 8201515 | Module Assembly (includes Item 23) (Replaces: W10223929) |
|
Immediately | $ 159.78 | ||||
| 22 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 23 | 489136 | Screw |
|
$ 10.80 | |||||
| 24 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 25 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 11.26 | |||||
| 100 | 4317943 | Ice Maker, Complete Assembly (Replaces: W10190952) |
|
Immediately | $ 183.45 |
