SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts

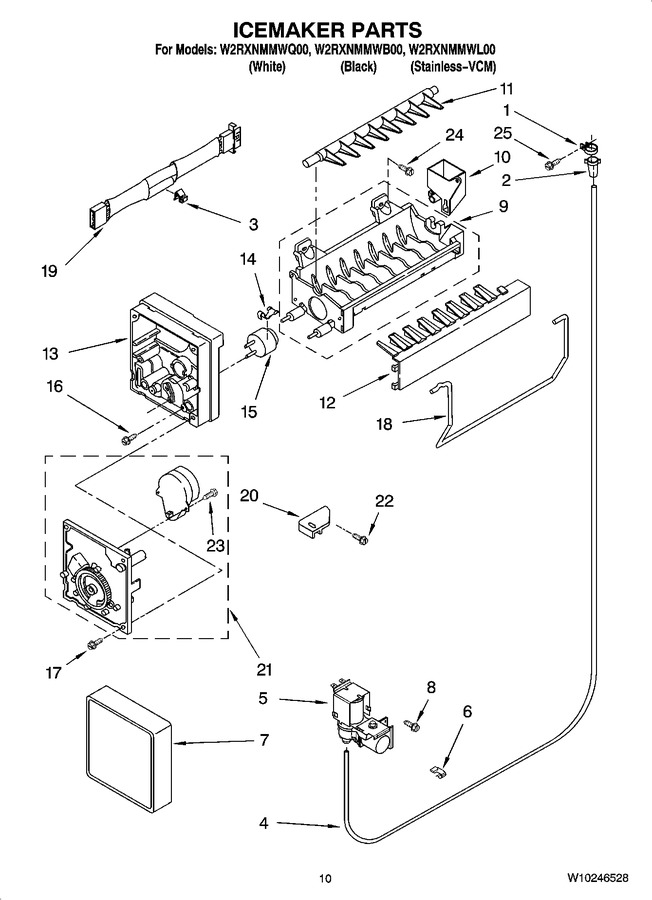

06 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
2	4387491		Insert, Tube   (Replaces: 2181939)				$ 8.23
3	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
4	W10823511		Tube Water   (Replaces: 2181943)			Immediately	$ 32.41
5	WP2315576		Valve Solenoid   (Replaces: 2315576)			Immediately	$ 98.12
6	2210495		Clip, Water Valve		Appelez-nous	-
7	WPW10289690		Cover   (Replaces: 2210484)			Immediately	$ 8.82
8	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
9	WPW10190929		Mold & Heater Assembly (also Order 542638 Sillicone Grease)   (Replaces: W10122527)				$ 233.52
10	W10122561		Cup, Water Fill   (Replaces: 628515)				$ 29.16
11	WP627843		Ejector   (Replaces: 627843)				$ 87.78
12	WPW10122563		Ice Stripper   (Replaces: W10122563)				$ 99.42
13	WP2195914		Support   (Replaces: 2194712)				$ 109.80
14	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.60
15	WP627985		Thermostat (also Order 542369 Cement Aluminlastic)   (Replaces: 628397)				$ 114.64
16	8533917		Screw				$ 14.04
17	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
18	WP627792		Shut Off Arm   (Replaces: 627792)				$ 88.76
19	WP2187464		Harness, Wiring   (Replaces: 2187464)				$ 130.80
20	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 33.78
21	8201515		Module Assembly (includes Item 23)   (Replaces: W10223929)			Immediately	$ 159.78
22	WP489478		Screw   (Replaces: 489478)				$ 8.18
23	489136		Screw (3-24 X 23/64)				$ 10.80
24	WP488163		Screw   (Replaces: 488208)				$ 7.92
25	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
100	4317943		Ice Maker, Complete Assembly   (Replaces: W10190952)			Immediately	$ 183.45
	1117510		Torx Key				$ 5.84
	4392901		Enamel, Biscuit (12 Oz. Spray Can)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Touch-up, White Porcelain (2 Oz.)				$ 51.75
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	350930		Enamel, White (12 Oz. Spray Can)			Immediately	$ 40.12
	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
	4392900		Enamel, Biscuit (1 Qt. Uncut)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.47
	W11729596		Field Installable Ice Maker (eckmf94)   (Replaces: 2155469)			Immediately	$ 155.00
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	72017		Brush Touch-up Kit (white)			Immediately	$ 12.30
	72032		Brush Touch-up Kit (black)			Immediately	$ 18.69
	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
