01 - Cabinet Parts

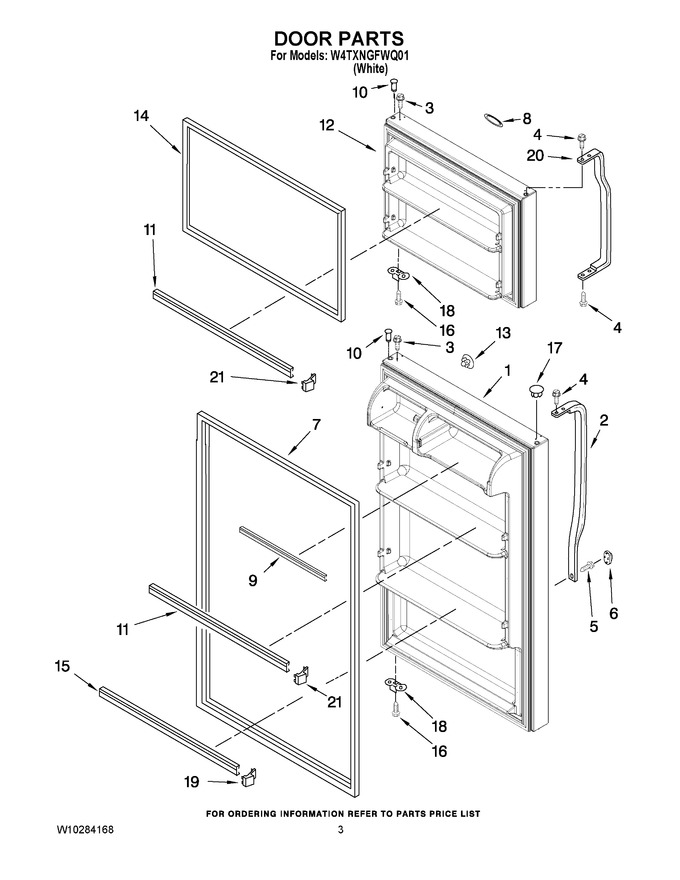

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316022W | Refrigerator Door Includes (7 & 10) (white) |
|
- | |||||
| 2 | WP2221946W | Handle, Refrigerator (bow) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 6 | WP2202819W | Cover, Screw (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 7 | WP2319265T | Door Gasket, Magnetic (Replaces: W10190033) |
|
Immediately | $ 233.76 | ||||
| 8 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 9 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 10 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 11 | WP2266727 | Trim-door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 12 | 2316021W | Freezer Door Includes (10 & 14) (white) |
|
- | |||||
| 13 | WP2189000 | Hole Plug, Handle (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 14 | WP2319263T | Door Gasket, Magnetic (Replaces: W10190031) |
|
Immediately | $ 215.86 | ||||
| 15 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 111.69 | |||||
| 16 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 17 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 18 | 2217944 | Bracket, Door Stop |
|
$ 26.55 | |||||
| 19 | WP2195916K | Plug, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 20 | WP2202098 | Handle, Freezer (bow) (Replaces: 2202098) |
|
$ 156.82 | |||||
| 21 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 |
