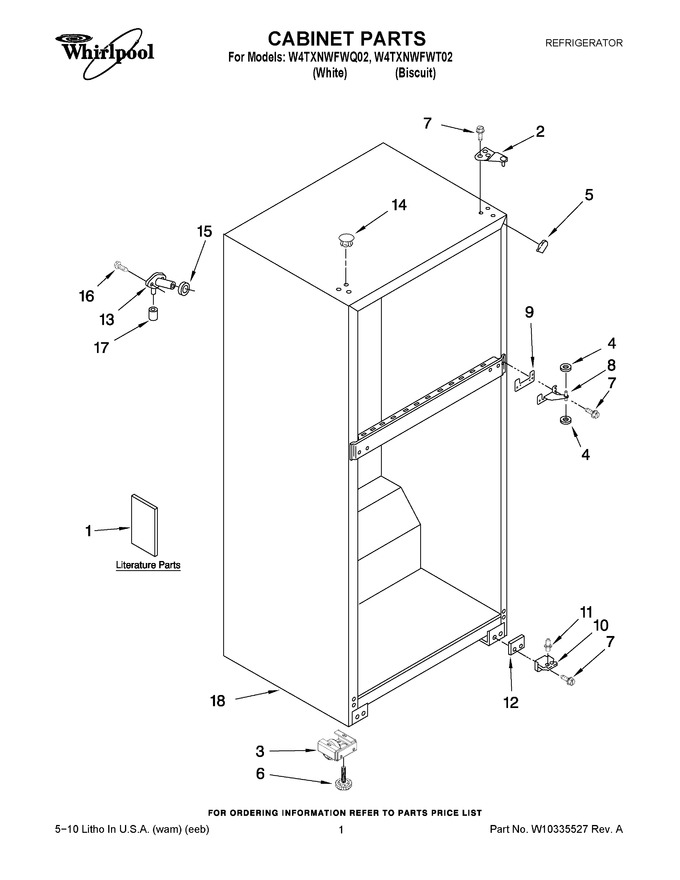

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10316780 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10231768 | Energy Label |
|
- | |||||
| 1 | 2316016 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Roller, Front (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP487802 | Washer 7/64 (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 5 | 2202282 | Corner Filler (biscuit) |
|
- | |||||
| 5 | W10859322 | Corner Filler (black) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 6 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 8 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 9 | 2166043 | Shim, Hinge Center |
|
$ 69.76 | |||||
| 10 | WP2325482 | Hinge Butt, Btm (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 11 | WP2325483 | Hinge-pin, Btm (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 12 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 13 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 12.59 | ||||
| 14 | 2200924 | Hole Plug (6) (biscuit) |
|
- | |||||
| 14 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 15 | WP1106508 | Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 16 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 17 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.67 | |||||
| 18 | N/P | Cabinet (not A Serviceable Part) |
|
- |
