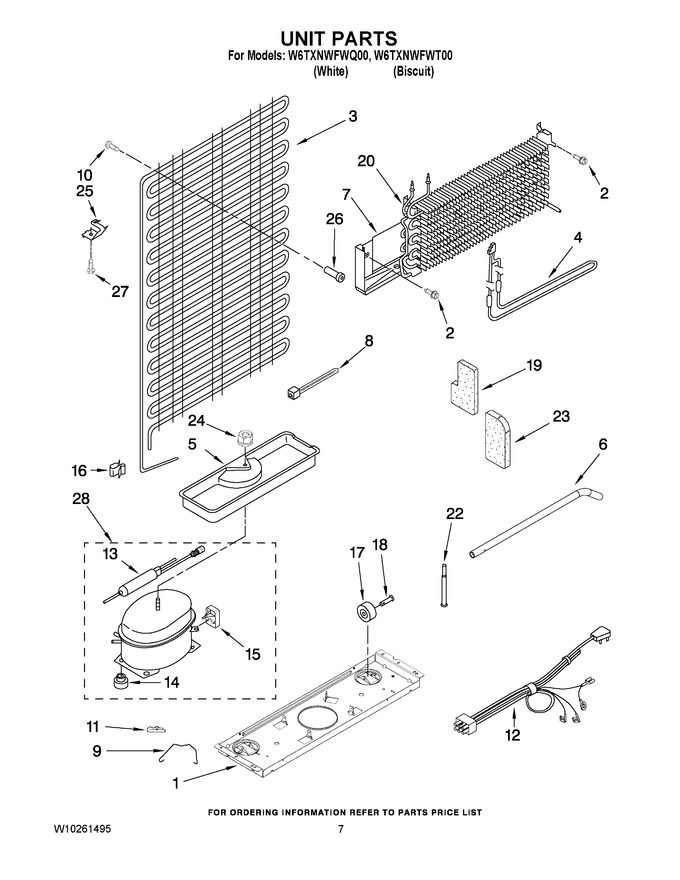

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10127453 | Support Plate, Compressor |
|
- | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 310.04 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2263749) |
|
Immediately | $ 93.70 | ||||
| 5 | 2201801 | Tray, Evaporator |
|
$ 78.52 | |||||
| 6 | 2264423 | Tube, Discharge |
|
- | |||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 9 | 2223313 | Retainer |
|
- | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 11 | 24364001 | Clip, Compressor |
|
- | |||||
| 12 | W10151654 | Wire Assy. Unit |
|
$ 308.35 | |||||
| 13 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 13 | W10843121 | Drier (production) (Replaces: 2320731) |
|
Immediately | $ 57.13 | ||||
| 14 | WP2163786 | Grommet (service) (Replaces: 2222084) |
|
$ 8.36 | |||||
| 15 | 2320151 | Start-device, Combination (start Relay & Overload For Production Compressor Only) (service) |
|
$ 190.17 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Rivet (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge-evap. |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 22 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 23 | 2262192 | Wedge-evap. |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Bracket, Condenser |
|
- | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W10309988 | Compressor (includes Items 13, 14, & 15) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: 2320132) |
|
Immediately | $ 587.29 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
