01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts

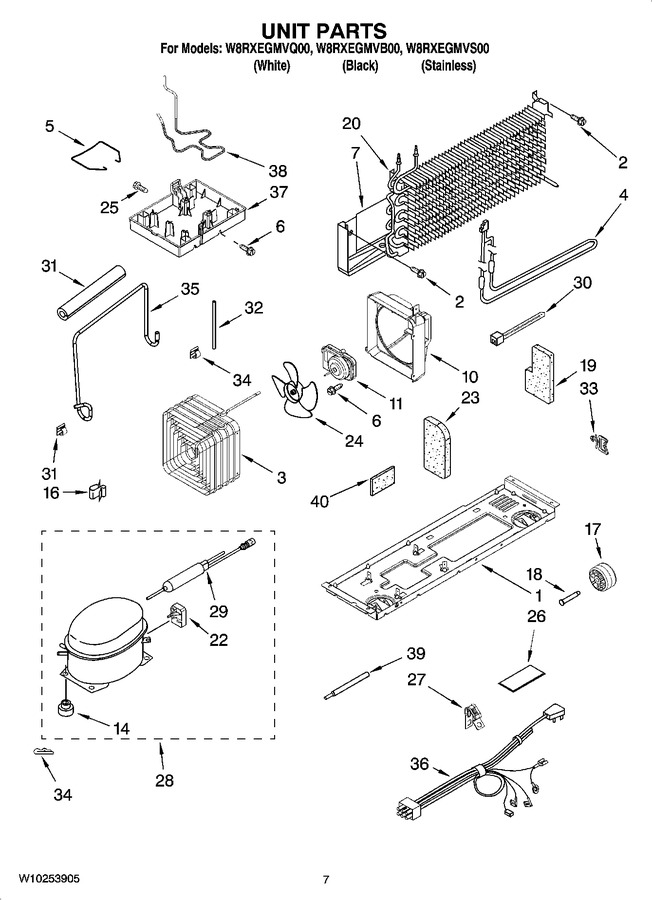

04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10127456) |
|
$ 132.10 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 3 | W10140200 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condensor |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 10.45 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 10 | WP2263929 | Air Baffle (Replaces: 2263929) |
|
$ 85.17 | |||||
| 11 | W11578915 | Motor, Condensor (Replaces: 2188875) |
|
Immediately | $ 77.99 | ||||
| 14 | 876811 | Grommet (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.80 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 299.90 | ||||
| 22 | WPW10233421 | Inverter Box Combination (start Relay And Overload For Production Compressor Only) (production) (Replaces: W10233421) |
|
$ 424.45 | |||||
| 22 | W10629033 | Inverter Box Combination (start Relay And Overload For Production Compressor Only) (service) (Replaces: 2223385) |
|
Immediately | $ 399.11 | ||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 98.99 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.11 | |||||
| 26 | 2266360 | Shield,electrical |
|
- | |||||
| 27 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 28 | W10209724 | Compressor (includes Item 22) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: 2319825) |
|
Immediately | $ 51.42 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.47 | |||||
| 31 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.89 | ||||
| 31 | 2264838 | Sleeve |
|
$ 83.05 | |||||
| 32 | 2264278 | Tube, Drain |
|
$ 71.79 | |||||
| 33 | 2266467 | Clip, Harness |
|
- | |||||
| 34 | 24364001 | Clip, Compressor |
|
- | |||||
| 35 | W10209727 | Extension Tube-heat |
|
$ 104.35 | |||||
| 36 | W10233418 | Wire Assy. Unit |
|
- | |||||
| 37 | WP2263928 | Evaporator Tray (Replaces: 2263928) |
|
$ 134.12 | |||||
| 38 | W10209728 | Tube, Discharge (incl. Pre Cooler) |
|
$ 111.54 | |||||
| 39 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 40 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 123.53 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 |
