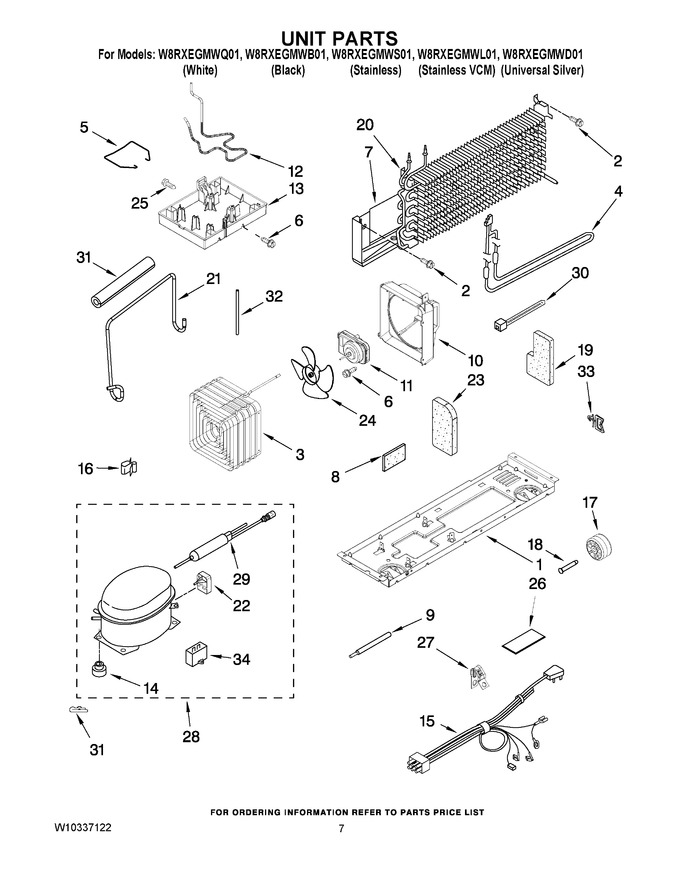

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10222450) |
|
$ 146.78 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 3 | W10140200 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | 2264835 | Clip, Condensor |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 9 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 10 | WP2263929 | Air Baffle (Replaces: 2263929) |
|
$ 94.63 | |||||
| 11 | W11578915 | Motor, Condensor (Replaces: 2188875) |
|
Immediately | $ 71.42 | ||||
| 12 | W10209728 | Tube, Discharge (incl. Pre Cooler) |
|
$ 123.93 | |||||
| 13 | WP2263928 | Evaporator Tray (Replaces: 2263928) |
|
$ 149.02 | |||||
| 14 | WPW10169124 | Grommet (service) (Replaces: 10835901) |
|
$ 7.55 | |||||
| 14 | 876811 | Grommet (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | WPW10151677 | Wire Assy. Unit (Replaces: W10151677) |
|
$ 136.91 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 333.22 | ||||
| 21 | W10209727 | Extension Tube-heat |
|
$ 115.94 | |||||
| 22 | WPW10197428 | Start-device Combination (start Relay And Overload For Production Compressor Only) (service) (Replaces: W10128791) |
|
Immediately | $ 89.21 | ||||
| 22 | WPW10197428 | Start-device Combination (start Relay And Overload For Production Compressor Only) (production) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 109.99 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.79 | |||||
| 26 | 2266360 | Shield,electrical |
|
- | |||||
| 27 | 549193 | Clamp-cord |
|
$ 14.06 | |||||
| 28 | W10160407 | Compressor (includes Items 14, 22, 29, & 34) (Replaces: W10200250) |
|
$ 629.92 | |||||
| 29 | W10843121 | Drier (production) (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 8.30 | |||||
| 31 | 24364001 | Clip, Wiring |
|
- | |||||
| 31 | 2264838 | Sleeve |
|
$ 92.28 | |||||
| 32 | 2264278 | Tube, Drain |
|
$ 79.77 | |||||
| 33 | 2266467 | Clip, Harness |
|
- | |||||
| 34 | WPW10662129 | Capacitor (service) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. R134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- |
