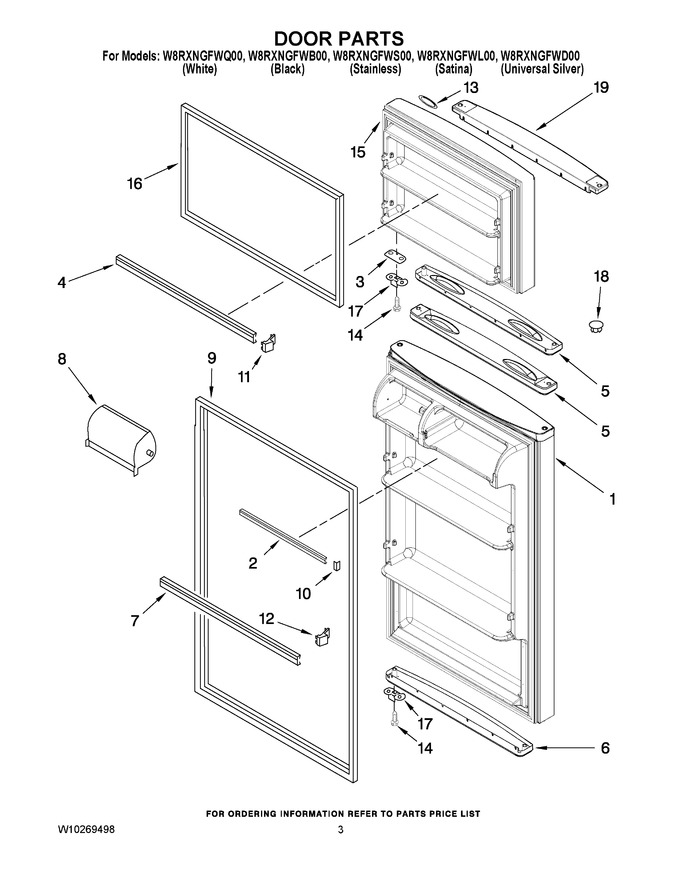

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2265677B		Refrigerator Door (includes Illus. 9) (black)		Appelez-nous	-
1	W10209801		Refrigerator Door (includes Illus. 9) (stainless)		Appelez-nous	-
1	2265677L		Refrigerator Door (includes Illus. 9) (satina)		Appelez-nous	-
1	2265677D		Refrigerator Door (includes Illus. 9) (universal Silver)		Appelez-nous	-
1	2263252W		Refrigerator Door (includes Illus. 9) (white)		Appelez-nous	-
2	W11129820		Trim, Door Shelf   (Replaces: 2266729)			Immediately	$ 127.34
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
3	2258681B		Shim, Door Stop (black)				$ 45.33
4	WP2266727		Trim, Door Shelf   (Replaces: 2266727)			Immediately	$ 92.50
5	2222045		Handle, Endcap (black)				$ 41.70
5	2265645W		Handle, Endcap (white)				$ 219.98
5	2265645D		Handle, Endcap (universal Silver)		Appelez-nous	-
6	2265647D		Endcap, Bottom (universal Silver)		Appelez-nous	-
6	2222048		Endcap, Bottom (black)		Appelez-nous	-
6	2265647W		Endcap, Bottom (white)				$ 63.82
7	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 111.69
8	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
9	WP2319264B		Door Gasket, Magnetic (black)   (Replaces: 2264723)				$ 323.85
9	WP2319264W		Door Gasket, Magnetic (white)   (Replaces: 2264727)			Immediately	$ 329.08
9	WP2319264T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190032)			Immediately	$ 192.71
10	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
11	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
12	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
14	W10276642		Screw   (Replaces: 8533904)				$ 6.41
15	2265678B		Freezer Door (includes Illus. 16) (black)		Appelez-nous	-
15	2263251W		Freezer Door (includes Illus. 16) (white)		Appelez-nous	-
15	2265678D		Freezer Door (includes Illus. 16) (universal Silver)		Appelez-nous	-
15	2265678L		Freezer Door (includes Illus. 16) (satina)		Appelez-nous	-
15	W10209802		Freezer Door (includes Illus. 16) (stainless)		Appelez-nous	-
16	WP2319263W		Door Gasket, Magnetic (white)   (Replaces: 2264726)			Immediately	$ 151.03
16	WP2319263B		Door Gasket, Magnetic (black)   (Replaces: 2264722)			Immediately	$ 268.28
16	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 169.53
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
18	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
18	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
19	2265644D		Endcap, Top (universal Silver)		Appelez-nous	-
19	2265644W		Endcap, Top (white)				$ 148.05
19	2252863		Endcap, Top (black)			Immediately	$ 155.53
