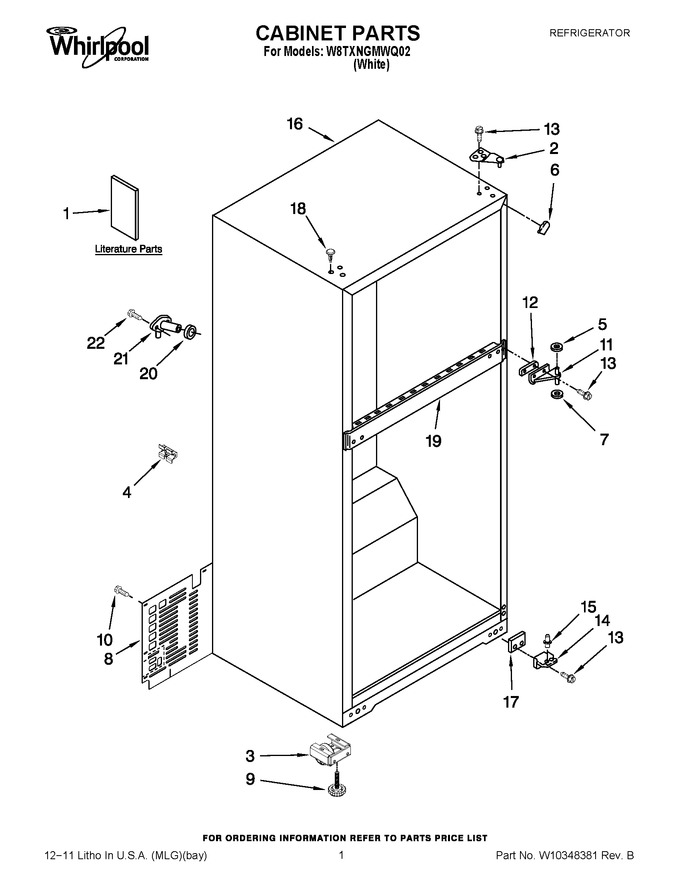

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251813		Energy Guide		Appelez-nous	-
1	W10283801		Service & Wiring Sheet		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./ Fzr.				$ 30.30
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 119.42
3	WPW10142530		Roller, Front (includes Item 9)   (Replaces: W10142530)			Immediately	$ 118.10
4	2266506		Spacer, Back Cb				$ 14.39
5	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
6	W10859322		Corner Filler   (Replaces: 2166003)				$ 8.09
7	WP487576		Washer, Nylon   (Replaces: 487576)			Immediately	$ 10.74
8	WP2264132		Cover, Unit   (Replaces: 2266389)				$ 113.77
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 12.35
10	WP489442		Screw 8-18 X .600   (Replaces: 489442)			Immediately	$ 11.49
11	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 85.08
12	2166043		Shim Hinge, Center				$ 69.76
13	WP489497		Screw 12-24 X .700   (Replaces: 489497)			Immediately	$ 29.09
14	WP2325482		Hinge Butt, Bottom   (Replaces: 2325482)			Immediately	$ 80.00
15	WP2325483		Hinge Pin, Bottom   (Replaces: 2325483)			Immediately	$ 7.55
16	N/P		Cabinet (not Serviced)		Appelez-nous	-
17	WP2201567		Shim Hinge, Bottom   (Replaces: 2201567)			Immediately	$ 8.16
18	WP2151652		Hole Plug   (Replaces: 2201012)				$ 22.87
19	N/P		Rail, Center (not Serviced)		Appelez-nous	-
20	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 10.43
21	WP2196157		Water Tube Fitting   (Replaces: 2174760)			Immediately	$ 12.59
22	WP488729		Screw 8-15 X 1/2   (Replaces: 2262176)			Immediately	$ 8.28
