SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer Door Parts


07 - Optional Parts

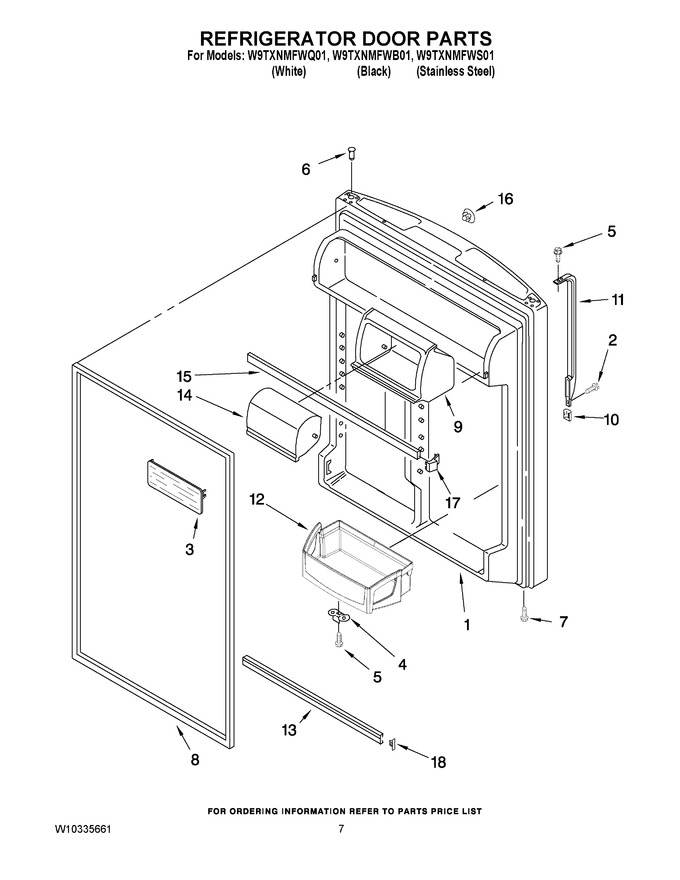

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183898		Refrigerator Door (includes Illus. 6 & 8) (white)		Appelez-nous	-
1	2200712		Refrigerator Door (includes Illus. 6 & 8) (black)		Appelez-nous	-
1	W10271882		Refrigerator Door (includes Illus. 6 & 8) (stainless Steel)		Appelez-nous	-
2	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
3	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 60.31
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
6	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
7	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
8	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 187.51
8	2177305		Door Gasket, Magnetic (black)   (Replaces: 2202881)				$ 290.07
9	2210566		Housing Compartment				$ 65.25
10	WP2193353W		Trim, Handle (white)   (Replaces: 2193353W)				$ 8.52
10	2193353B		Trim, Handle (black)				$ 5.85
11	4388947		Handle (white)   (Replaces: 2213112W)				$ 204.47
11	4388950		Handle (black)   (Replaces: 2213112B)				$ 235.81
12	WP2204810		Bin, Door (3)   (Replaces: 2204810)				$ 83.57
13	WPW10421484		Trim, Door Shelf   (Replaces: 2195949)				$ 136.25
14	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 50.33
15	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
16	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
16	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
17	WP2156007		Endcap, Door Trim   (Replaces: 2156007)			Immediately	$ 8.03
18	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79

    View Diagram in Separate Window       Print Part List
