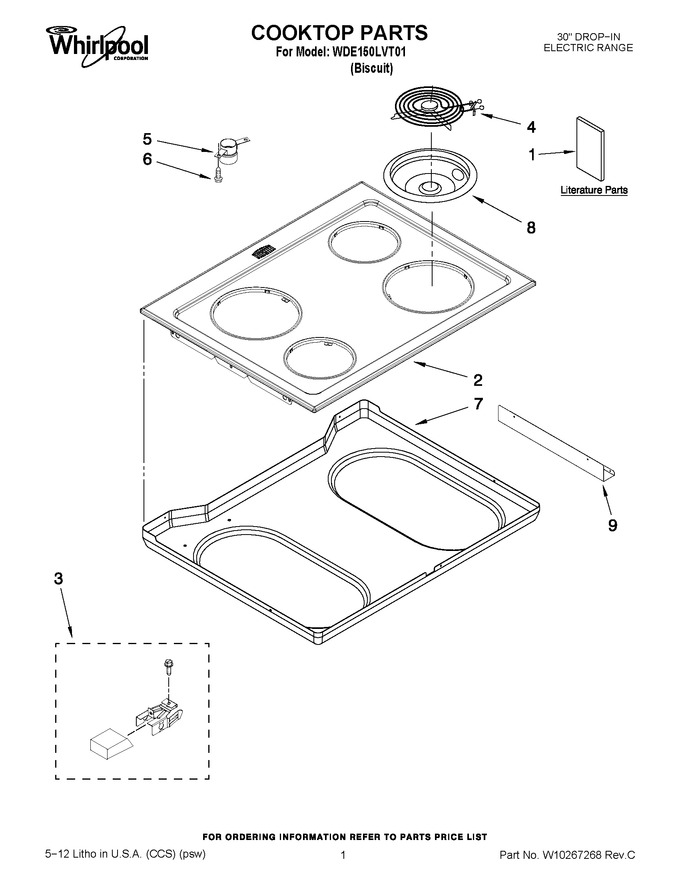

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175572 | Use & Care Guide |
|
- | |||||
| 1 | 8101P336-60 | Installation Instructions |
|
- | |||||
| 2 | W10206557 | Cooktop (biscuit) |
|
- | |||||
| 3 | 8255P412-60 | Kit, Hardware |
|
$ 31.52 | |||||
| 4 | WP9761346 | Element (rf,lr) (large) (Replaces: 7406P476-60) |
|
Immediately | $ 104.62 | ||||
| 4 | WPW10345407 | Element (rf,lr) (small) (Replaces: 7406P475-60) |
|
Immediately | $ 165.42 | ||||
| 5 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 7 | 4011F371-80 | Bottom, Burner Box |
|
- | |||||
| 8 | WPW10196406 | Bowl, Drip (small) (Replaces: 7725P053-60) |
|
Immediately | $ 13.39 | ||||
| 8 | WPW10196405 | Bowl, Drip (large) (Replaces: 7725P054-60) |
|
Immediately | $ 17.29 | ||||
| 9 | 3801F881-51 | Bracket, Box |
|
- |
