SELECT A DIAGRAM

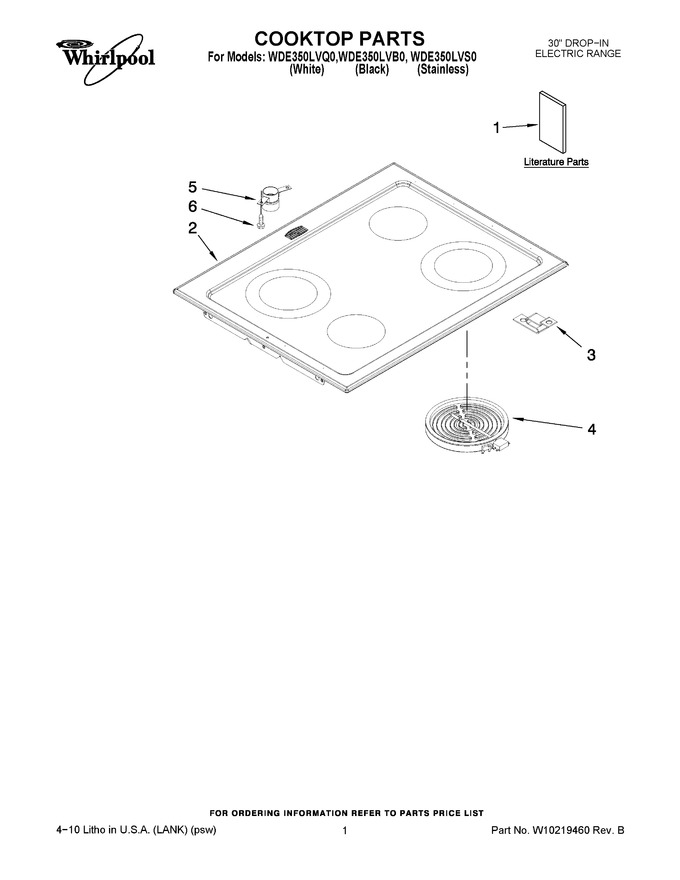

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175572 | Use & Care Guide |
|
- | |||||
| 1 | 8101P747-60 | Installation Instructions |
|
- | |||||
| 2 | W10170209 | Cooktop (white) (Replaces: W10170213) |
|
$ 985.92 | |||||
| 2 | W10170215 | Cooktop (black) |
|
- | |||||
| 3 | 8004P093-60 | Support,element |
|
$ 10.61 | |||||
| 4 | W10823711 | Element (rf,lr) (small (2)) (Replaces: 7406P365-60) |
|
Immediately | $ 204.39 | ||||
| 4 | W10823692 | Element (rf,lr) (large (2)) (Replaces: 7406P403-60) |
|
Immediately | $ 227.59 | ||||
| 5 | 8026P074-60 | Tube, Vent Upper |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 |
