SELECT A DIAGRAM

01 - Cabinet Parts

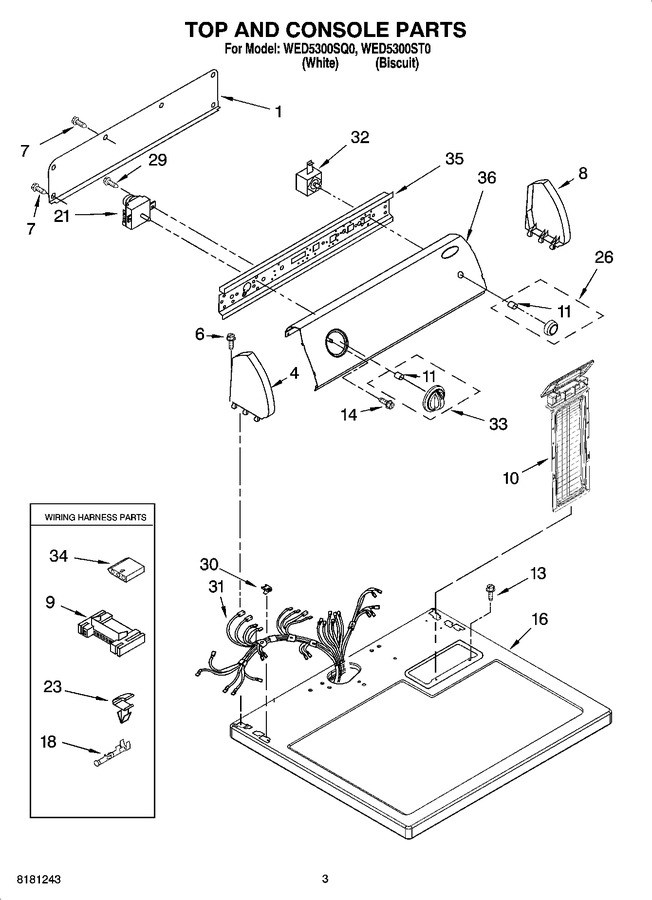

02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
8	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
10	8557858		Screen, Lint (biscuit)		Appelez-nous	-
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
16	8557931		Top (biscuit)		Appelez-nous	-
16	8557930		Top (white)		Appelez-nous	-
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
21	WP8299778		Timer, 60 Hz.   (Replaces: 8299778)			Immediately	$ 232.09
23	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
26	8566068		Knob, Push-to-start (biscuit)		Appelez-nous	-
26	WP8566065		Knob, Push-to-start (white)   (Replaces: 8566065)				$ 55.30
29	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	WPW10450292		Harness, Wiring   (Replaces: 8299867)				$ 279.32
32	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
33	8566064		Timer Knob Assembly (biscuit)		Appelez-nous	-
33	8566061		Timer Knob Assembly (white)				$ 26.93
34	3936144		Connector				$ 21.22
35	8544895		Bracket, Control		Appelez-nous	-
36	8579482		Panel, Control (biscuit)		Appelez-nous	-
36	8578844		Panel, Control (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
