SELECT A DIAGRAM
01 - Cabinet Parts

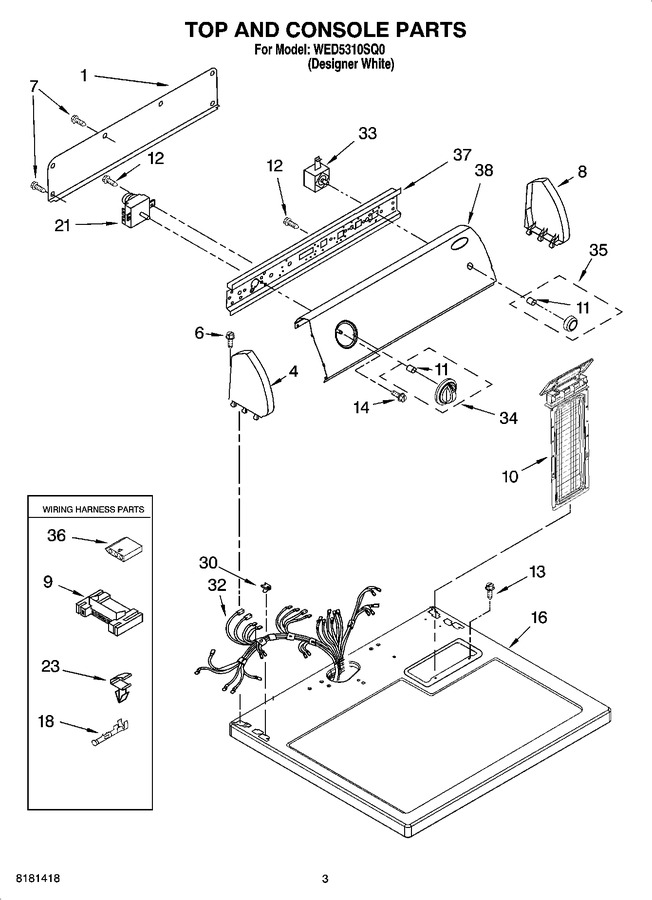

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 16 | 8557930 | Top |
|
- | |||||
| 18 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 21 | WP8299779 | Timer, 60 Hz. (Replaces: 8299779) |
|
Immediately | $ 353.22 | ||||
| 23 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 32 | WPW10450292 | Harness, Wiring (Replaces: 8299867) |
|
$ 279.32 | |||||
| 33 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 34 | 8566061 | Timer Knob Assembly |
|
$ 26.93 | |||||
| 35 | WP8566065 | Knob, Control (Replaces: 8566065) |
|
$ 55.30 | |||||
| 36 | 3936144 | Connector |
|
$ 21.22 | |||||
| 37 | 8544895 | Bracket, Control |
|
- | |||||
| 38 | W10028970 | Panel, Control |
|
- |
