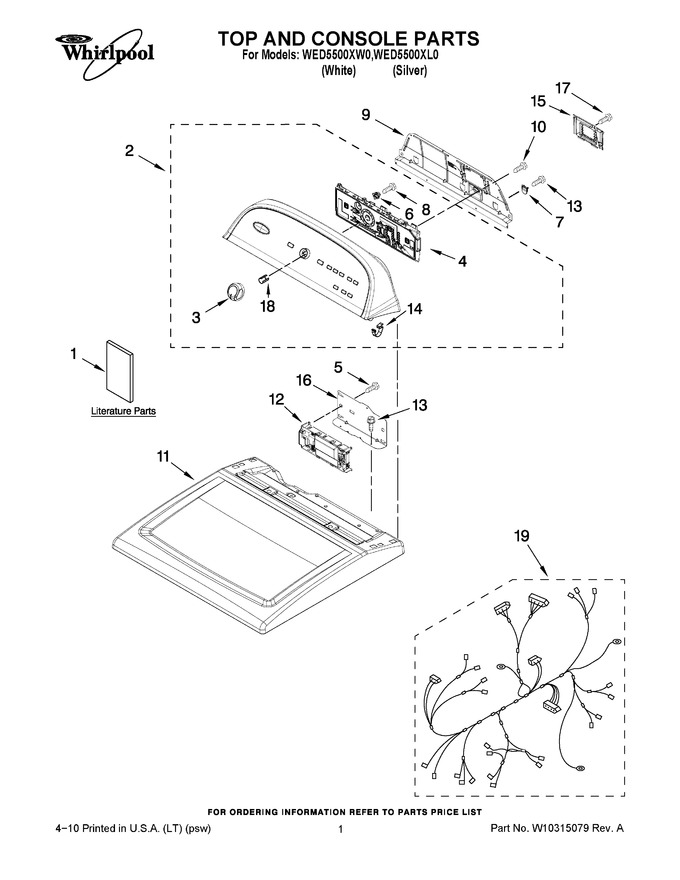

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096988		Installation Instructions		Appelez-nous	-
1	W10097012		Guide, Use & Care		Appelez-nous	-
1	W10096965		Tech Sheet		Appelez-nous	-
2	WPW10269607		Console Assembly (complete) (white)   (Replaces: W10269607)				$ 527.27
2	WPW10269607		Console Assembly (complete) (silver)   (Replaces: W10269608)				$ 527.27
3	WPW10251392		Knob Assembly   (Replaces: W10251392)				$ 59.55
4	WPW10269623		User Interface Assembly   (Replaces: W10269623)				$ 313.89
5	WP33001882		Screw, 8-18 X .500   (Replaces: 337686)				$ 83.71
6	W10274524		Tensioner Fascia		Appelez-nous	-
7	W10279552		Plug-upper Rear Panel		Appelez-nous	-
8	W10853898		Screw, 8-16 X 1/2   (Replaces: W10219342)			Immediately	$ 8.18
9	W10096969		Panel, Rear   (Replaces: W10269598)				$ 197.80
10	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
11	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 215.10
11	W10268729		Top (silver)				$ 97.74
12	WPW10317636		Ccu-control   (Replaces: W10259285)			Immediately	$ 379.85
13	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 8.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
16	W10271580		Bracket, Motor Control		Appelez-nous	-
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 8.25
18	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
19	W10253981		Harness, Electric		Appelez-nous	-
