SELECT A DIAGRAM

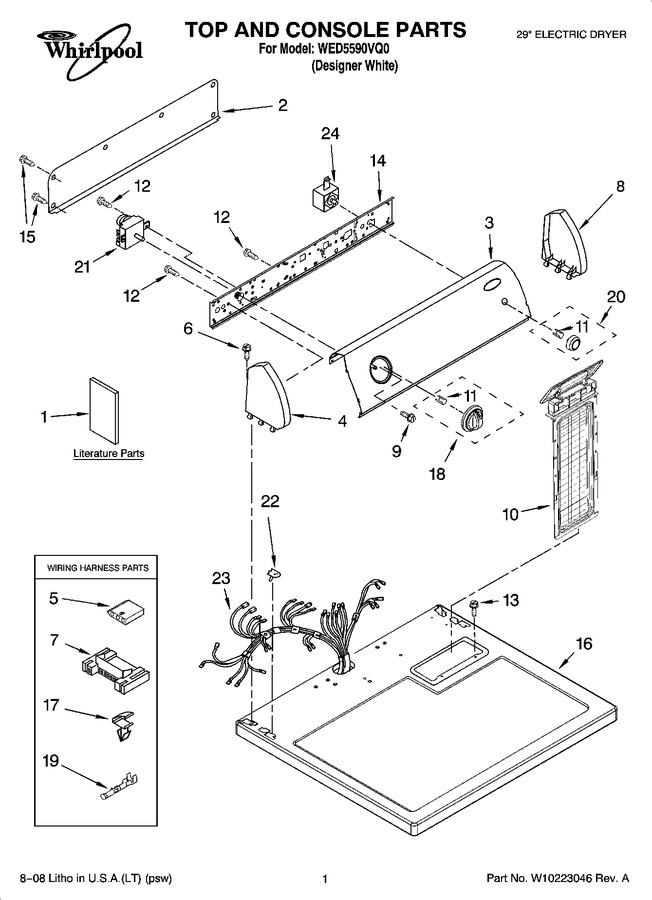

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677818		Dryer		Appelez-nous	-
1	W10150610		Use & Care Guide		Appelez-nous	-
1	W10150612		Installation Instructions		Appelez-nous	-
1	W10042960		Sheet, Cycle Feature		Appelez-nous	-
1	8576793		Wiring Diagram		Appelez-nous	-
2	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
3	W10167874		Panel, Control		Appelez-nous	-
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
10	W10874409		Screen, Lint   (Replaces: 8557861)			Immediately	$ 67.01
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	8544895		Bracket, Control		Appelez-nous	-
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8557930		Top		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
18	8566061		Timer Knob Assembly				$ 26.93
19	WP94614		Terminal   (Replaces: 94614)				$ 8.05
20	WP8566065		Knob, Push-to-start   (Replaces: 8566065)				$ 55.30
21	WP8299778		Timer, 60 Hz.   (Replaces: 8299778)			Immediately	$ 232.09
22	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
23	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 279.32
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66

    View Diagram in Separate Window       Print Part List
