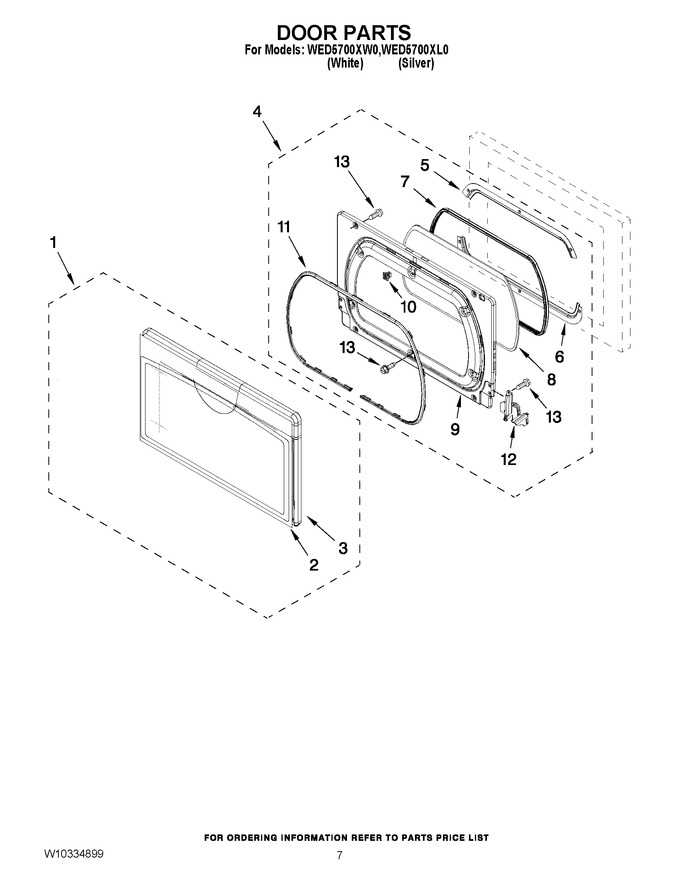

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10284124		Outer Door Assembly (white)		Appelez-nous	-
1	W10284142		Outer Door Assembly (silver)		Appelez-nous	-
2	W10284116		Window, Outer Door		Appelez-nous	-
3	W10284117		Door Outer (white)		Appelez-nous	-
3	W10284142		Door Outer (silver)   (Replaces: W10284139)		Appelez-nous	-
4	W11376676		Inner Door Assembly   (Replaces: W10284179)		Appelez-nous	-
5	W10284119		Retainer, Glass Upper		Appelez-nous	-
6	W10284120		Retainer, Glass Lower		Appelez-nous	-
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
8	WPW10284121		Door, Glass   (Replaces: W10284121)				$ 263.61
9	W10284133		Door, Inner		Appelez-nous	-
10	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
11	WPW10354795		Seal, Door   (Replaces: W10284123)				$ 130.12
12	W11371722		Hinge, Door (r.h.)   (Replaces: W10284141)				$ 106.42
12	W11376139		Hinge, Door (l.h.)   (Replaces: W10284140)				$ 106.42
13	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 8.52

    View Diagram in Separate Window       Print Part List
