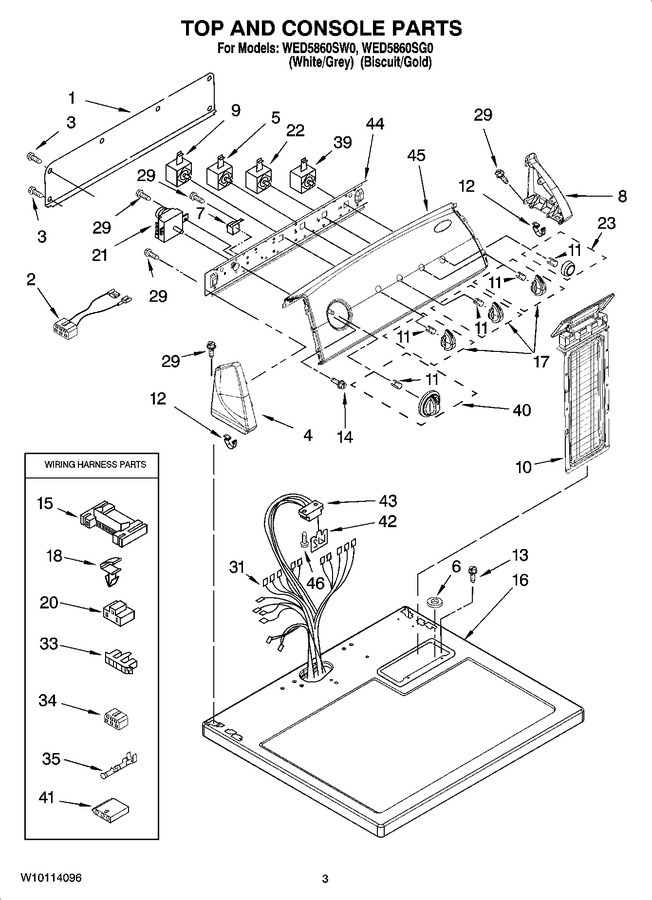

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
2	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	WP8565957		Cap, End (l.h.) (white)   (Replaces: 8566035)				$ 64.76
4	8566036		Cap, End (l.h.) (biscuit)		Appelez-nous	-
5	3405154		Switch, Wrinkle Shield				$ 160.52
6	237446		Washer (top/chute)		Appelez-nous	-
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WP8565954		Cap, End (r.h.) (white)   (Replaces: 8566032)				$ 65.84
8	8566033		Cap, End (r.h.) (biscuit)		Appelez-nous	-
9	WP8578352		Switch, Temperature   (Replaces: 8578352)				$ 237.85
10	8557858		Screen, Lint (biscuit)		Appelez-nous	-
10	W11778253		Screen, Lint (white)   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	3395683		Connector (motor)			Immediately	$ 54.45
16	W10028880		Top (biscuit)		Appelez-nous	-
16	W10028870		Top (white)		Appelez-nous	-
17	W10034390		Knob, Control (3) (biscuit)				$ 34.42
17	W10034380		Knob, Control (3) (grey)				$ 25.06
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
20	3401144		Connector, (pts Relay)				$ 12.81
21	WP3406725		Timer, 60 Hz.   (Replaces: 3406725)				$ 387.01
22	3405152		Switch, End Of Cycle				$ 131.07
23	W10034770		Knob, Push-to-start (grey)		Appelez-nous	-
23	W10034780		Knob, Push-to-start (biscuit)		Appelez-nous	-
29	WP90767		Screw, Mounting (8-18 X 5/16)   (Replaces: 8533971)			Immediately	$ 8.25
31	W10071290		Harness, Wiring		Appelez-nous	-
33	3397269		Connector, Timer				$ 25.55
34	3347243		Connector 6-circuit		Appelez-nous	-
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
39	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
40	W10034760		Timer Knob Assembly (biscuit)		Appelez-nous	-
40	W10034750		Timer Knob Assembly (grey)				$ 28.27
41	3936144		Connector				$ 21.22
42	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 329.93
43	3391885		Connector, Edge				$ 90.72
44	8566052		Bracket, Control		Appelez-nous	-
45	W10029070		Panel, Control (grey)		Appelez-nous	-
45	W10029080		Panel, Control (gold)		Appelez-nous	-
46	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
